Old 02-04-2012, 08:55 PM   #1
Nassol562
Intake

Nassol562's Avatar

Join Date: Feb 2012
Location: Los Angeles, CA
Posts: 31
Nassol562 is on a distinguished road
Default Need help pinpointing where this stuff goes

I just recently got into being a mechaninc not too long ago and this ended up being my second car and i had to replace a head gasket. its been quite an experience for me and learned alot of this. and dealt with pain in the ass problems. One thing i forgot to do is take pictures of the car before i took it apart and now i am down to a few brackets that idk where they go and a bracket that dosent wanna bolt down. I have the manual and it dosent show me where it goes.

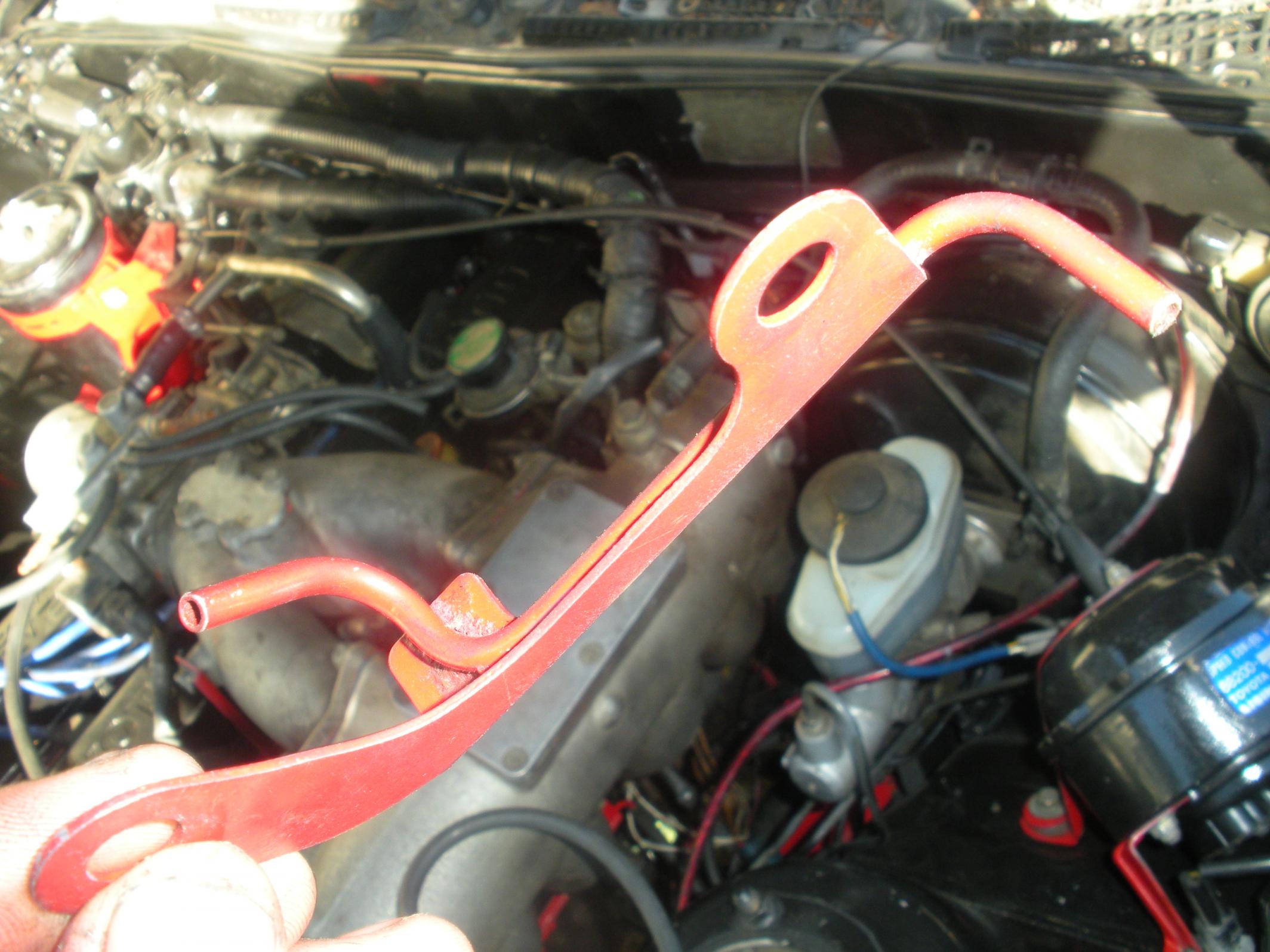

the first picture is the bracket i have no idea where it goes at. the second seems like its and air hose thingy idk i just dont know where it will go at i have the manual and i cant find it on there. im sorry my terminology is bad. and the 3rd is i cant install my pulley properly on the red bracket.
Attached Thumbnails
Click image for larger version

Name:	DSCN1268.jpg
Views:	326
Size:	276.8 KB
ID:	4467   Click image for larger version

Name:	DSCN1270.jpg
Views:	300
Size:	281.9 KB
ID:	4468   Click image for larger version

Name:	DSCN1273.jpg
Views:	332
Size:	299.5 KB
ID:	4469   Click image for larger version

Name:	DSCN1272.jpg
Views:	303
Size:	282.8 KB
ID:	4470
Nassol562 is offline   Reply With Quote
Old 02-04-2012, 09:08 PM   #2
Nassol562
Intake

Nassol562's Avatar

Join Date: Feb 2012
Location: Los Angeles, CA
Posts: 31
Nassol562 is on a distinguished road
Default

and the last picture i need to know what its called it goes next to the intake
Nassol562 is offline   Reply With Quote
Old 02-04-2012, 09:34 PM   #3
cre

Toyota
Racing
Development

cre's Avatar

Join Date: Apr 2007
Posts: 5,038
cre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond repute
Default

I suggest you start taking pictures before dismantling something and use masking tape to label the articles once removed.

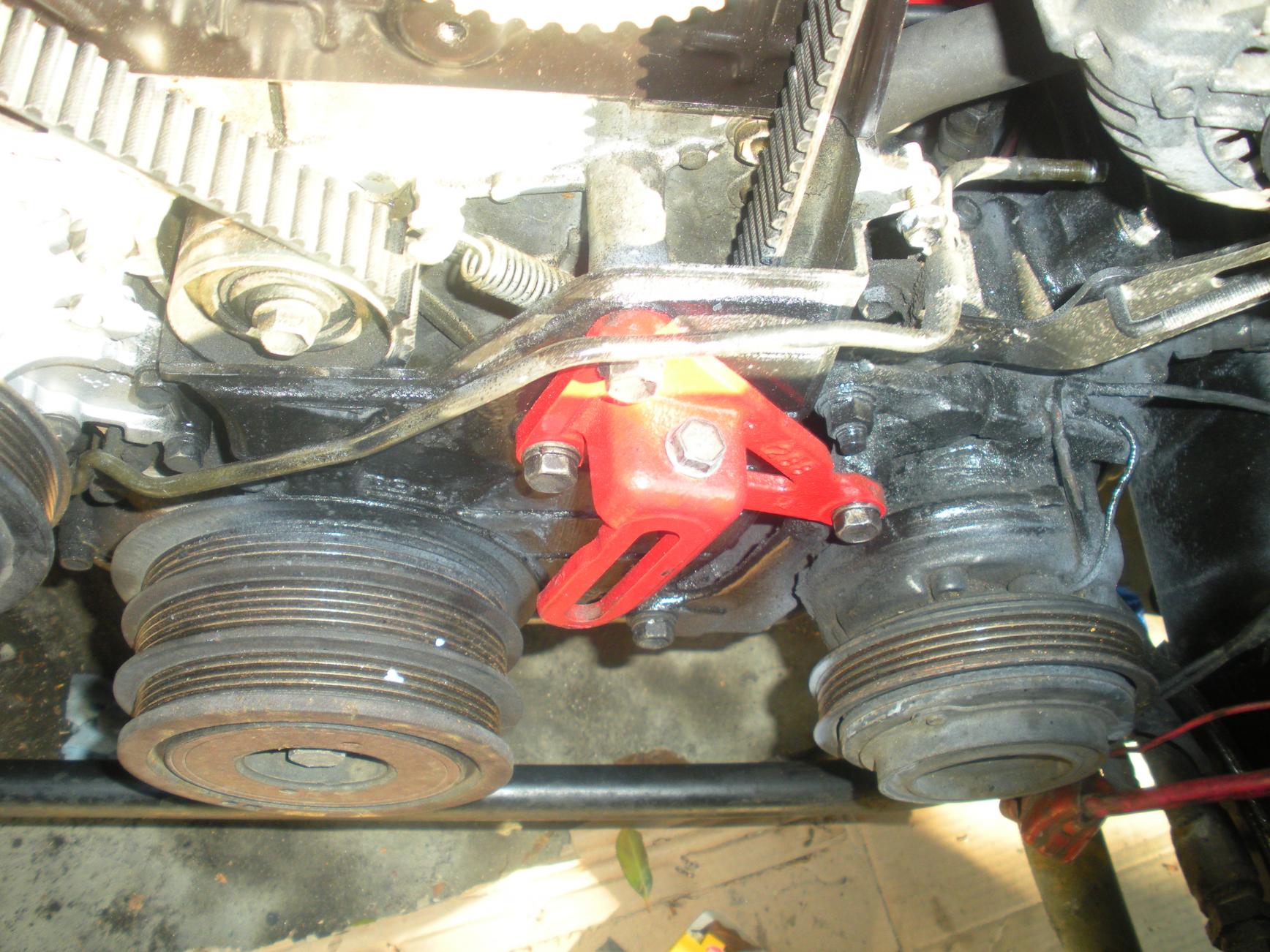

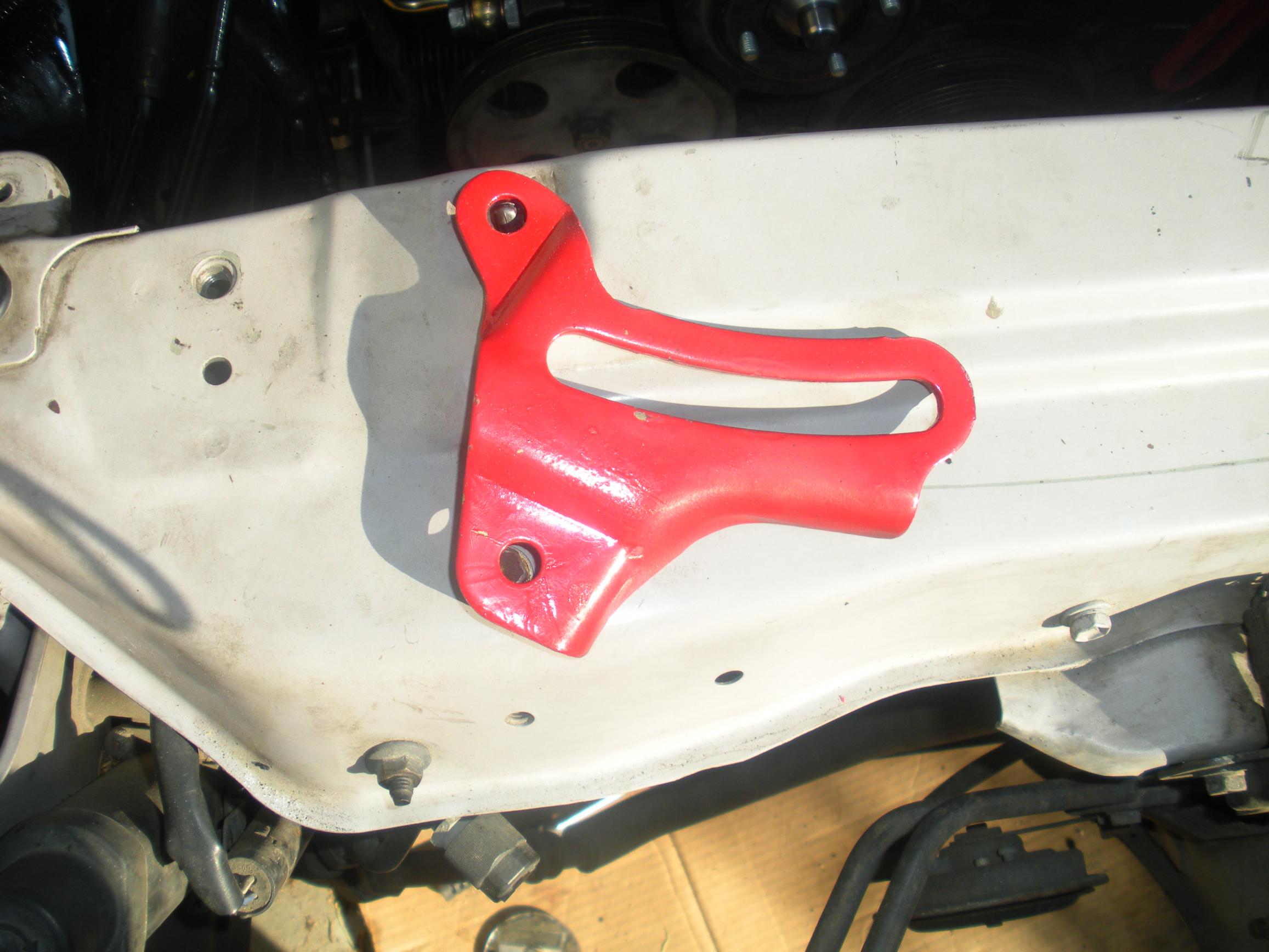

#1 - Upper bracket for the power steering pump.

#2 - Is a vacuum hard pipe which mounts by runners #5 and #6 at the union of the upper and lower halves of the intake plenum.

#3 - Personally I wouldn't have even tried to take that apart... but you got it apart and with a little kick to the memory center you'll probably remember how you did it.

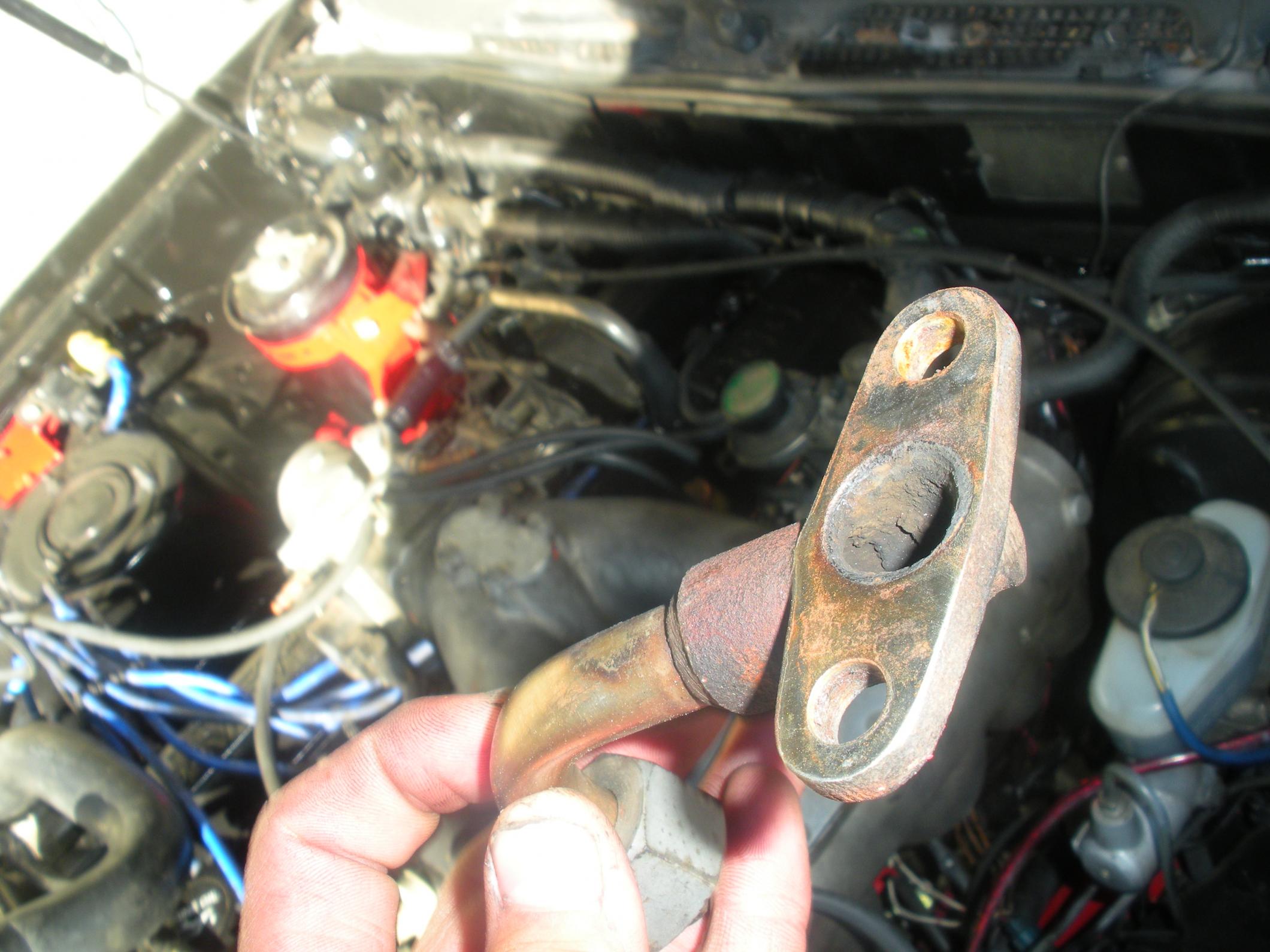

#4 - Is part of the EGR plumbing. It connects at the rear of the surge tank. Be sure to clean out the rest of the EGR's plumbing which runs into the surge tank and exits at the union in the center of the Y pipe.


EDIT: Here's a diagram which shows most of the vacuum hose routing. The hard pipe is all the way to the right. http://www.cygnusx1.net/Supra/Librar...spx?F=1708&P=2
__________________
If something breaks or you need to contact a member of the administration please post HERE. Unless it's a private or administration matter please post it on the forum. It benefits no one else if car related questions aren't posted for future users and takes away from the time I'm able to spend helping on the rest of the forum.

If you're so inclined I'm always more than happy to accept tips via PayPal.
Tip Jar --->

Last edited by cre; 02-04-2012 at 09:37 PM.
cre is offline   Reply With Quote
Old 02-11-2012, 07:56 PM   #4
Nassol562
Intake

Nassol562's Avatar

Join Date: Feb 2012
Location: Los Angeles, CA
Posts: 31
Nassol562 is on a distinguished road
Default extra help

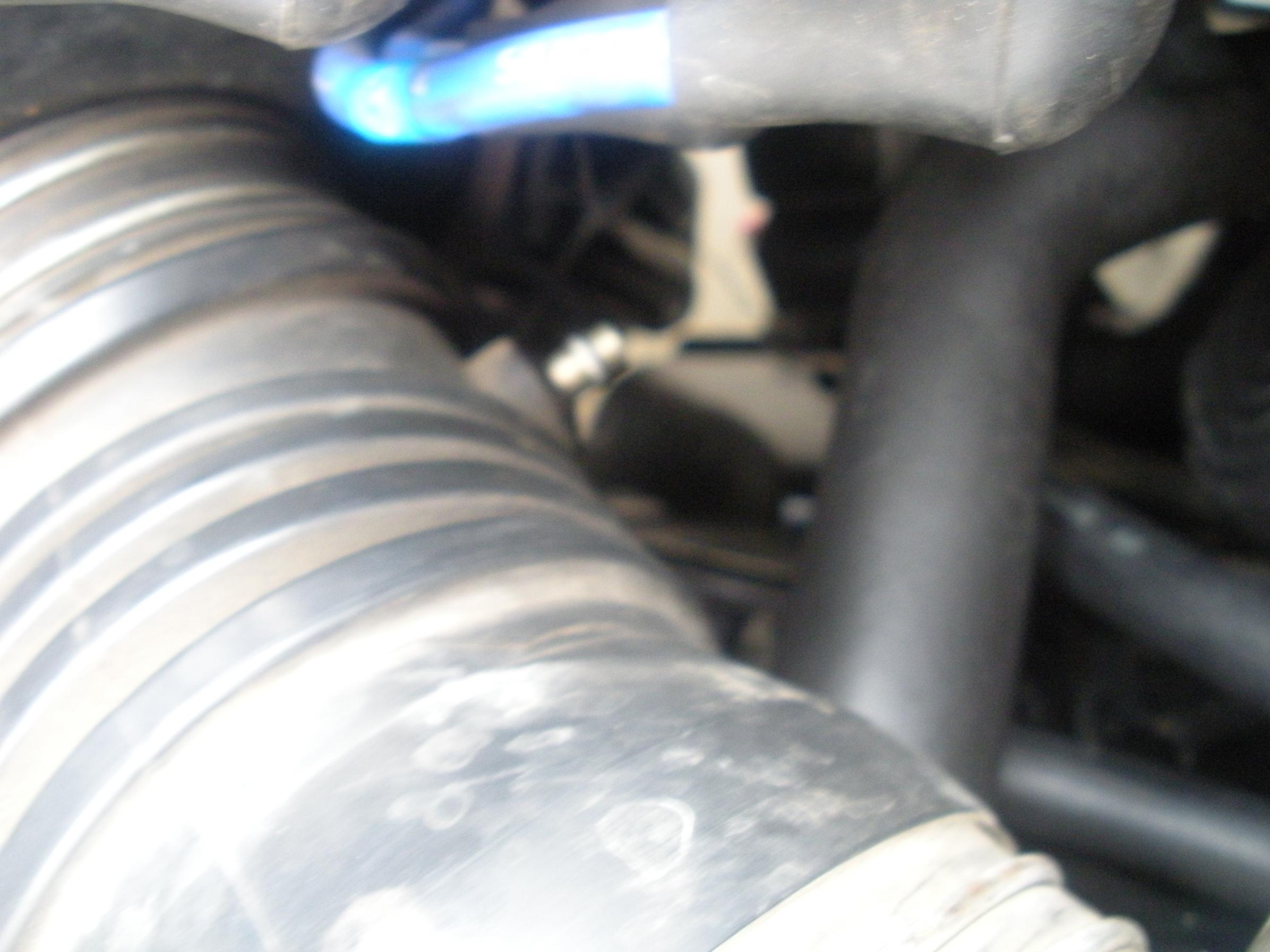

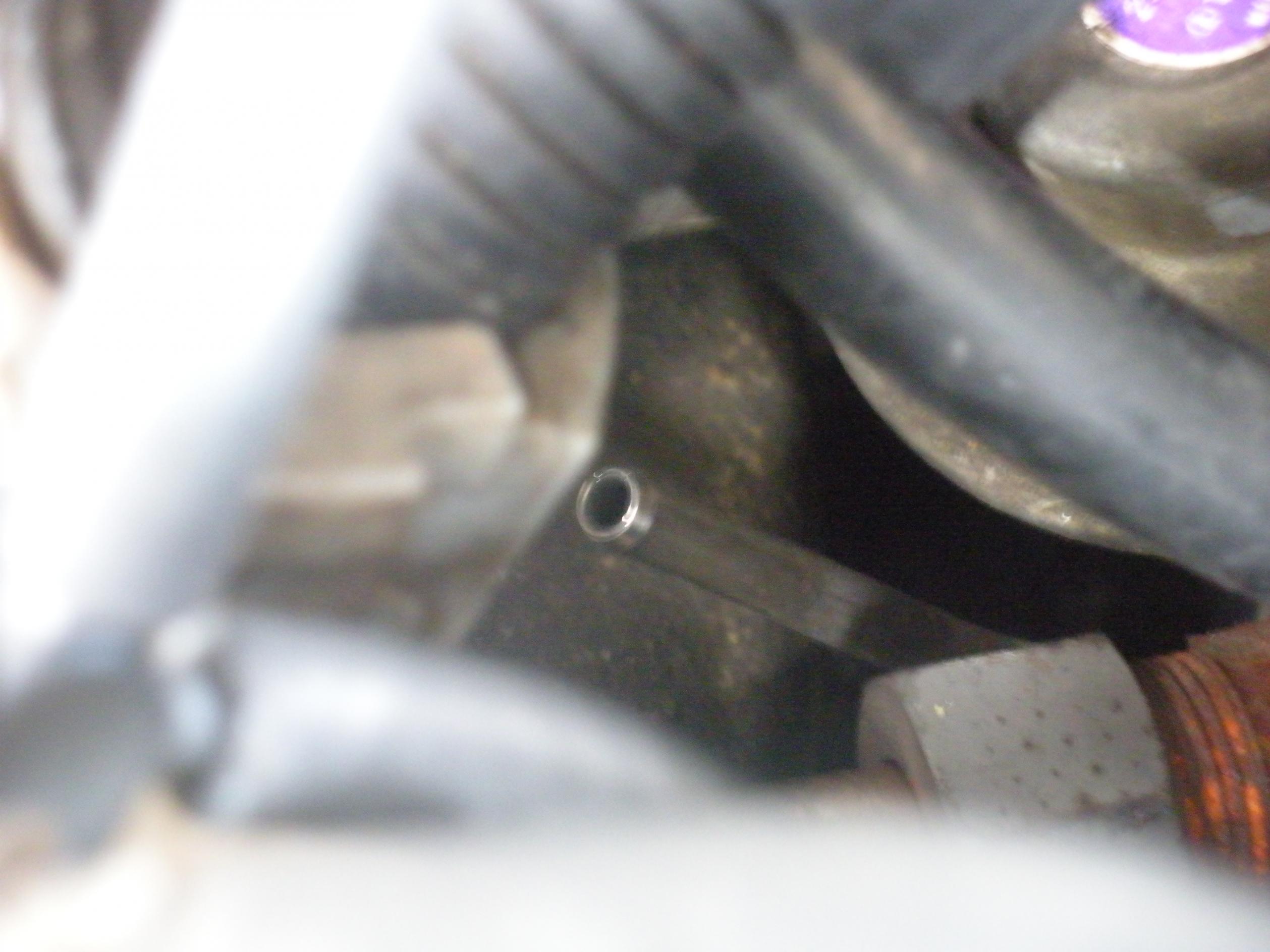

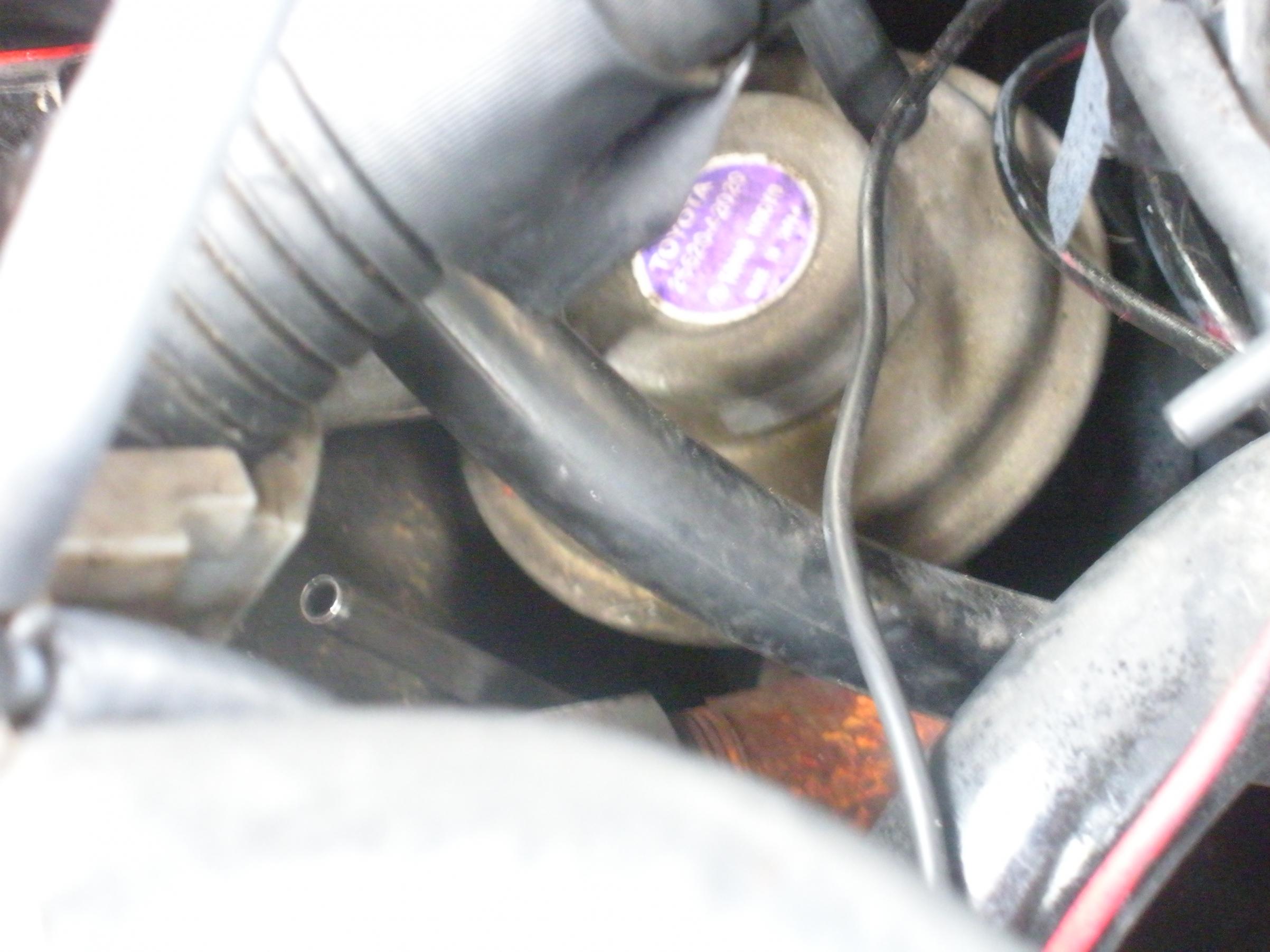

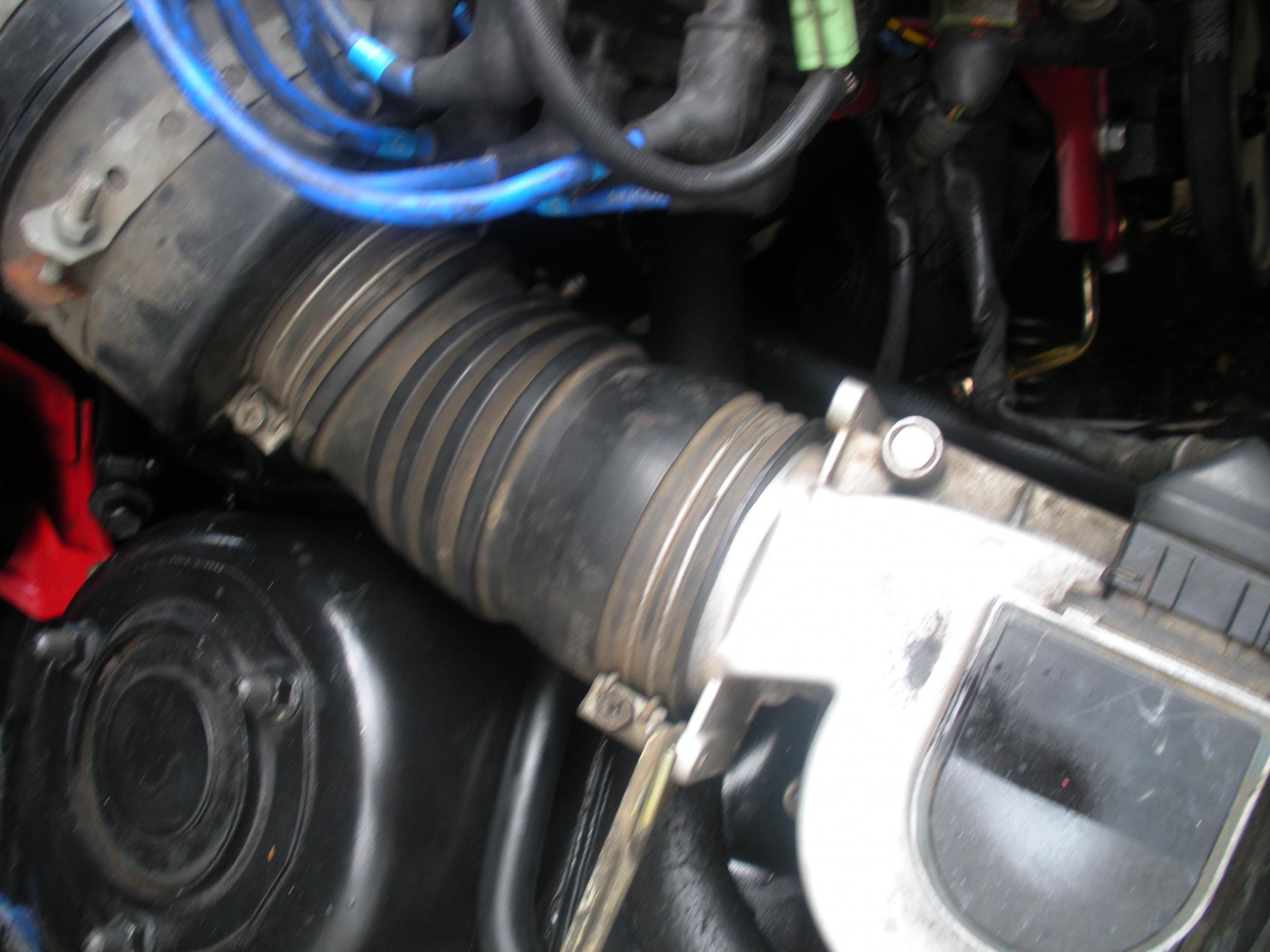

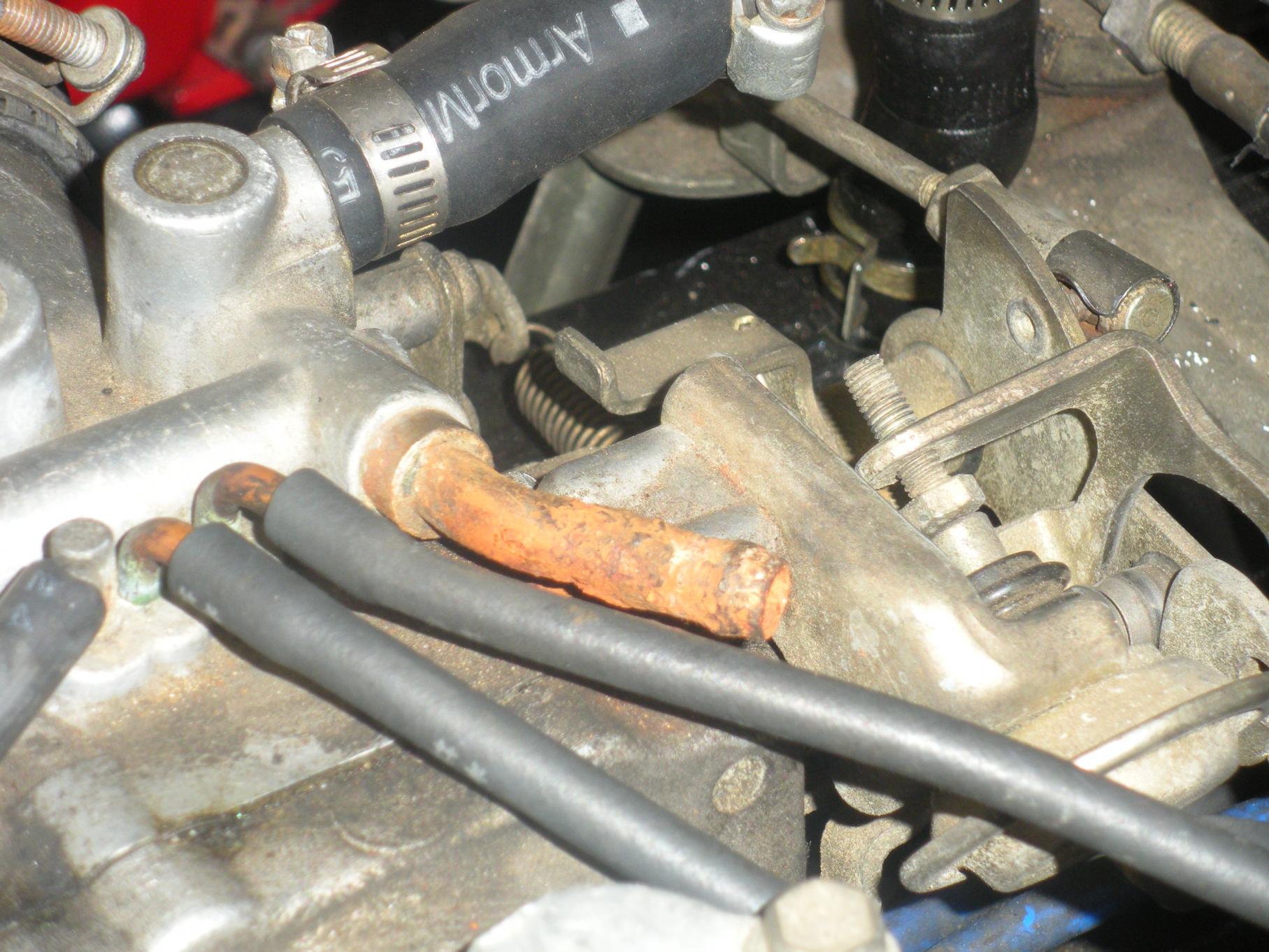

alrighty thanks for the chart that helped me out well and managed to get everything hooked up right but now i need help with a few open hose fitting that dont know where they go hooked up too 1 seems to be a cooling system line but idk where it would go too. and the 2nd one is kind of by the egr valve and that purple one idk. and the 3rd is on the air filter. if you can help me find out where they go hooked up too
Attached Thumbnails
Click image for larger version

Name:	DSCN1285.jpg
Views:	283
Size:	295.8 KB
ID:	4475   Click image for larger version

Name:	DSCN1290.jpg
Views:	273
Size:	312.1 KB
ID:	4476   Click image for larger version

Name:	DSCN1292.jpg
Views:	273
Size:	290.2 KB
ID:	4477   Click image for larger version

Name:	DSCN1296.jpg
Views:	291
Size:	297.6 KB
ID:	4478   Click image for larger version

Name:	DSCN1297.jpg
Views:	300
Size:	277.5 KB
ID:	4479

Nassol562 is offline   Reply With Quote
Old 02-11-2012, 08:36 PM   #5
cre

Toyota
Racing
Development

cre's Avatar

Join Date: Apr 2007
Posts: 5,038
cre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond repute
Default

#1 That coolant line comes up from under the intake manifold; Runs to the ISCV (Idle Speed Control Valve); Returns to the engine at a small nipple which is part of the lower intake runner's flange by cylinder #2.

#2 Hard to say from that picture, but it is the nipple that the vacuum control unit connects to via the fabric wrapped hose on the bottom? Black plastic unit with three nipples which is mounted a bit above the EGR control valve.

#4 Power steering udle up vacuum source. It connects to one of the nipples on the vacuum switch mounted to the rear of the power steering pump.
__________________
If something breaks or you need to contact a member of the administration please post HERE. Unless it's a private or administration matter please post it on the forum. It benefits no one else if car related questions aren't posted for future users and takes away from the time I'm able to spend helping on the rest of the forum.

If you're so inclined I'm always more than happy to accept tips via PayPal.
Tip Jar --->
cre is offline   Reply With Quote
Old 02-11-2012, 10:26 PM   #6
Nassol562
Intake

Nassol562's Avatar

Join Date: Feb 2012
Location: Los Angeles, CA
Posts: 31
Nassol562 is on a distinguished road
Default

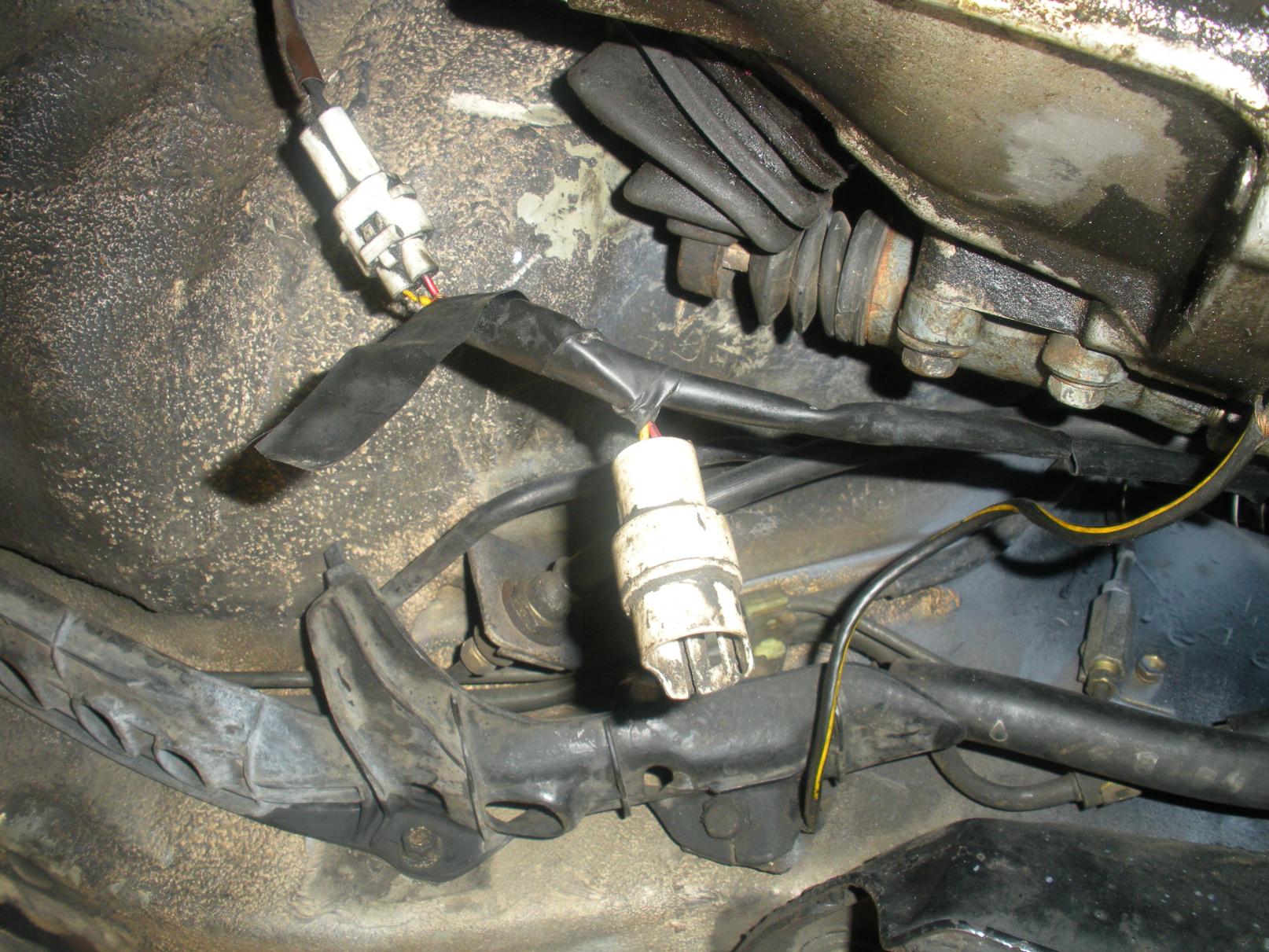

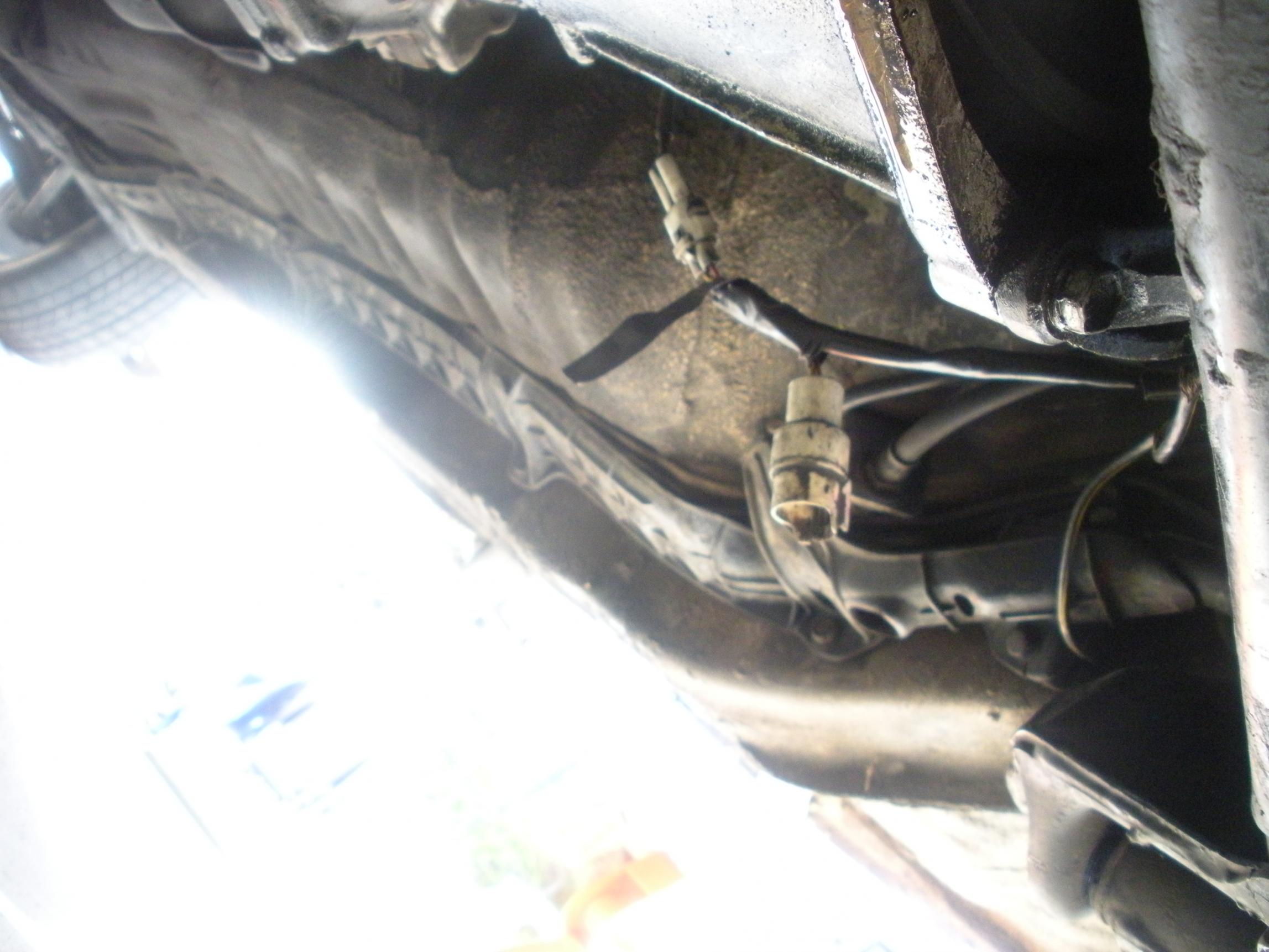

alright well i cant find where the coolant line goes i cant find it its hard to work under that intake manifold. but my car wont start i got a connector by the transmission and cant seem to find it there is no connector like that its a 2 pronged connection then i got a loose 4 pronged connector loose too
Attached Thumbnails
Click image for larger version

Name:	DSCN1319.jpg
Views:	315
Size:	284.8 KB
ID:	4480   Click image for larger version

Name:	DSCN1306.jpg
Views:	303
Size:	297.5 KB
ID:	4481   Click image for larger version

Name:	DSCN1312.jpg
Views:	314
Size:	306.2 KB
ID:	4482
Nassol562 is offline   Reply With Quote
Old 02-12-2012, 02:07 AM   #7
cre

Toyota
Racing
Development

cre's Avatar

Join Date: Apr 2007
Posts: 5,038
cre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond repute
Default

Um.... You don't get to pick on the coolant line; It's either connected or you purge coolant all over while the engine is moving. I believe the source for that coolant circuit is part of the coolant hard pipe assembly which wraps around the engine.

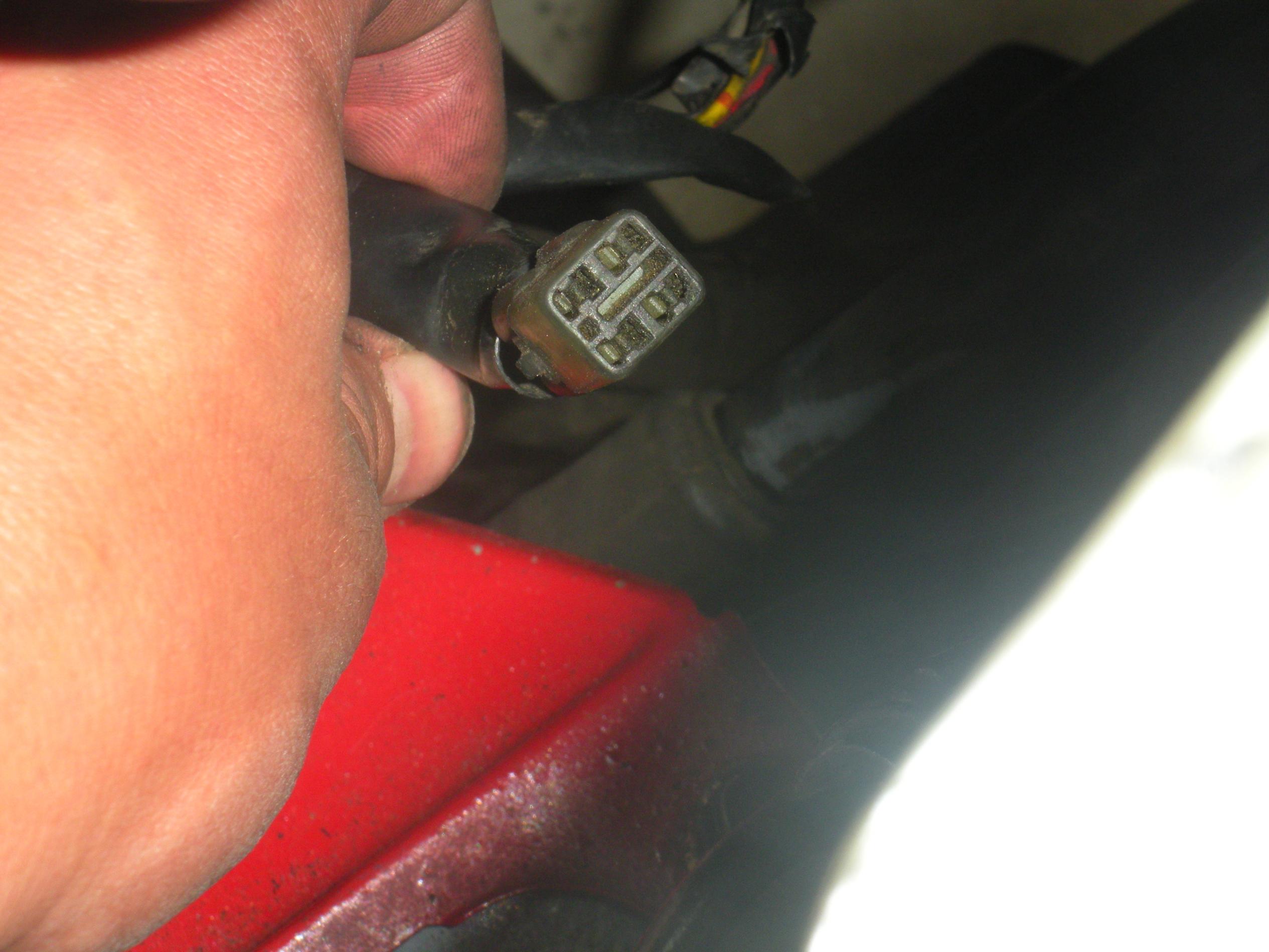

The 4 pin connector may be for an auto transmission... If so it'll look dirty and worn all the way around whereas if it was connected to something previously it'll look like half is relatively clean.

The 2 pin connector may be for either a VSV (the ACIS VSV specifically which mounts to the middle flange connecting the upper and lower halves of the intake plenum) or the reverse light switch connector which runs along to another connector which is routed across the top of the transmission.

If the car is not cranking at all it's not the 4 pin nor the 2 pin plugs to blame. Check the two wires which run to the starter: Solenoid power and main battery power for the starter motor.
__________________
If something breaks or you need to contact a member of the administration please post HERE. Unless it's a private or administration matter please post it on the forum. It benefits no one else if car related questions aren't posted for future users and takes away from the time I'm able to spend helping on the rest of the forum.

If you're so inclined I'm always more than happy to accept tips via PayPal.
Tip Jar --->
cre is offline   Reply With Quote
Old 02-13-2012, 09:11 PM   #8
Nassol562
Intake

Nassol562's Avatar

Join Date: Feb 2012
Location: Los Angeles, CA
Posts: 31
Nassol562 is on a distinguished road
Default

alrighty well i got the engine to turn on and stay on. the only thing that has me from not driving it is the coolant line. i just cant find where it goes
Nassol562 is offline   Reply With Quote
Old 02-13-2012, 09:51 PM   #9
cre

Toyota
Racing
Development

cre's Avatar

Join Date: Apr 2007
Posts: 5,038
cre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond repute
Default

It's hell to reach with the upper intake plenum installed.
__________________
If something breaks or you need to contact a member of the administration please post HERE. Unless it's a private or administration matter please post it on the forum. It benefits no one else if car related questions aren't posted for future users and takes away from the time I'm able to spend helping on the rest of the forum.

If you're so inclined I'm always more than happy to accept tips via PayPal.
Tip Jar --->
cre is offline   Reply With Quote
Old 02-14-2012, 08:29 AM   #10
Nassol562
Intake

Nassol562's Avatar

Join Date: Feb 2012
Location: Los Angeles, CA
Posts: 31
Nassol562 is on a distinguished road
Default thanks

alrighty well after a few hours i seemed to find that lost hose that was already attached to where it was suppose too -____- all i need to do now is buy a bolt for the rack and pinion holding brackets other than that thank you for your help couldnt have done it with out ya
Nassol562 is offline   Reply With Quote
