Default starter removal

im trying to get my starter off on my 87 n/a. i got one bolt off but there is one more closer to the engine i cant reach. how do i get to that?
tone loc is offline
Old 11-10-2006, 02:24 PM   #2
Bill UK
AEM EMS

Bill UK's Avatar

Join Date: Jul 2006
Location: UK
Posts: 891
Bill UK is on a distinguished road
Default

I managed to get to the top nut using this type of spanner the bottom nut wasn’t to bad.The problem is then trying to remove the starter from the engine bay,I found removing it from underneath was the only way out.

Ratchet Ring Spanner
Bill UK is offline
Old 11-11-2006, 09:23 PM   #3
Bill UK
AEM EMS

Bill UK's Avatar

Join Date: Jul 2006
Location: UK
Posts: 891
Bill UK is on a distinguished road
Default

Behind the manifold from the top, not the easiest of jobs plenty cuts and grazes on the arms.
Bill UK is offline
Old 11-12-2006, 06:16 AM   #4
tone loc
20psi boost

tone loc's Avatar

Join Date: Jun 2006
Location: Chicago
Posts: 706
tone loc is on a distinguished road
Default

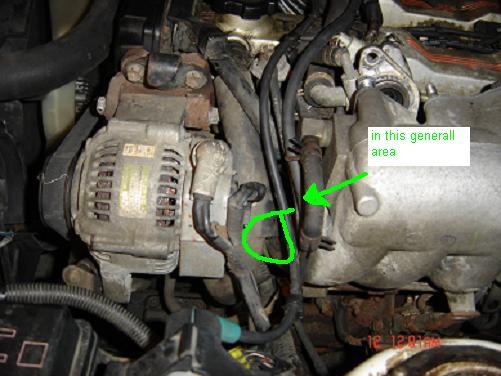

decided to remove the entire manifold just so you know its easier to put it back on and what not. how do i get to this bolt?? (its the one one the left side its covered by like a huge oil hose.) do i have to take off the alternator?
Attached Thumbnails
Click image for larger version

Name:	bolt on intake.JPG
Views:	7743
Size:	35.8 KB
ID:	650   Click image for larger version

Name:	DSC00791.JPG
Views:	9145
Size:	64.9 KB
ID:	651
tone loc is offline
Old 11-12-2006, 03:17 PM   #5
dcrusupra
Jive Turkey MOD

dcrusupra's Avatar

Join Date: Aug 2005
Location: Plantation, Fl.
Posts: 1,052
dcrusupra is on a distinguished road
Default

Quote:
Originally Posted by boogum7
i have taken it off about 100 times. it takes about 5 min maybe ten at most.
Lol, thats cuz you've taken it off 100 times. I'm the same. It took about 2 hours the first time I did it. Now I can take it off and put it back on in 10 mins. I just did it from under the car. The bottom bolt is easy, but the one on the top of the bellhousing is the hard one. Just reach your hand up on top and feel around, find out where you need to go. Then take the ratchet and put it up there handle first (it'll help cuz theres not much room to move around), then just mate the socket with the head of the bolt and go from there. If you didnt already get a new starter, make sure you get the 89+. It's threaded so you don't need the nut. Just screw the bolt into the starter. It makes the job 100 times easier.
__________________
New Rebuild
My CarDomain
dcrusupra is offline
Old 05-09-2010, 05:07 AM   #6
btwilson86
Super Moderator

btwilson86's Avatar

Join Date: May 2007
Location: Billings, Montana
Posts: 1,034
btwilson86 is on a distinguished road
Default

The starter motor is held on by 2 bolts. On pre89 starters, the top bolt slides through the mounting ear and is fastened on the other side with a nut. I'm told that 89+ starters are threaded here, making removal much easier.

These instructions are for starters with a nut/bolt.

When removing the starter, there isn't anything else that you need to remove (unless you still have the OEM plastic covers under the engine).

Most of the starter removal is by feel, because you're right; you can't see shit. Make sure you remove all the wires from the starter before you remove it, and that the negative battery cable is disconnected. Do the top bolt first, it's the hardest. You can identify it by laying under the engine (head by the bellhousing, feet out under the front of the car), reach your left hand up and start groping that starter. Once you feel where the starter meets the bellhousing, follow that crease towards the block. Your fingers should shortly meet a bolt with a nut on it; that's the top bolt. Throw a short box end wrench on the end that faces the front of the car. Make sure it's secure, because you're going to be twisting that bolt and relying on the wrench to stay on that nut on it's own once it hits the starter.

Now, leaving the wrench in place, find all of your ratchet extensions. I think you'll need about 24" of them, so if you don't have enough go buy more. Throw those all together with the correct sized socket, and go lay down under the driver side of your tranny. If you tilt your head up, you should be able to barely see that top bolt. Snake your ratchet contraption up there, and slowly start removing that bolt. Make sure that wrench you put up didn't fall off, and keep loosening that bolt.

That should do it, installation is the opposite of removal. And that bottom bolt should be a piece of cake.
__________________
1989 7MGTE R154 Targa Top White Package w/Blue Interior
Driftmotion 57trim CT26, Upgraded Intercooler, 2.25" Hard Pipes, 3" Turbo Back Exhaust with Test Pipe, HKS VPC w/GM 3 bar MAP sensor, APEXi S-AFC, Walbro 255lph fuel pump, ProSport EVO Series Boost / Fuel Pressure / AFR gauges, Lotek a Pillar Gauge Pod, HKS Type 0 Turbo Timer, Eibach Lowering Springs, Tokico Illumina II TEMS struts, custom powder coated Motegi Racing TrakLite wheels

Last edited by btwilson86; 11-30-2010 at 03:09 PM.
btwilson86 is offline
Old 05-09-2010, 06:35 AM   #7
cre

Toyota
Racing
Development

cre's Avatar

Join Date: Apr 2007
Posts: 5,036
cre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond repute
Default

The job is made more difficult with the N/A MKIII.... the ACIS system has a large vacuum tank which is mounted in front of the starter which IIRC does make the job a bit more difficult on the N/A.... It's still plenty doable without pulling a bunch of extra parts. Stubby, ratcheting spanners are your friend.
__________________
If something breaks or you need to contact a member of the administration please post HERE. Unless it's a private or administration matter please post it on the forum. It benefits no one else if car related questions aren't posted for future users and takes away from the time I'm able to spend helping on the rest of the forum.

If you're so inclined I'm always more than happy to accept tips via PayPal.
Tip Jar --->
cre is offline
Old 05-31-2010, 03:34 AM   #8
robdiehl
Stock

Join Date: May 2010
Location: Fort Collins, Colorado
Posts: 1
robdiehl is on a distinguished road
Default Starter

Geeze! I just completed starter removal and solenoid rebuild of my 87 MKIII 5sp N/A starter today. Thanks to BTWilson86's post a bit earlier here. This took me almost 5 hours due to some misunderstanding and false starts. I'll try to enhance his details to keep others from repeating my mistakes.

I put a jack stand behind the drivers front wheel and raised it two notches. I didnt need to remove ANY items other than the starter to complete this task.

I mistakenly thought that I could remove the upper nut somehow. You cannot. You must put the 14mm box wrench on that upper NUT only to secure it while you remove the upper BOLT from behind. (I could see that upper nut from standing up above and putting my right cheek on the drivers side hood strut. This let me see if I had the box wrench on proper. Also, it worked best to place that box wrench in an upward diagonal position so it would bite on support when I turned the upper bolt from behind. When I placed my cheek against the hood strut, the box wrench was pointing directly at my eye.)

To remove the upper BOLT, follow his instructions. Just to add, that your feet should be sticking out from the drivers side for this step. And yes, it took about 24" of extensions. I put a swivel adapter at the end next to my 14mm socket. It is such an awkward angle the swivel keeped drooping, so I put a small piece of duct tape around the swivel to restrict it. Also, wait until you have the socket secure on the top bolt before adding the ratchet. I just found that gravity kept working against me at this angle. I had a fairly large ratchet, but still couldnt break the upper bolt loose, so I grabbed a foot-long cheater pipe for the ratchet, and it quickly came loose.

The lower NUT and BOLT are easy to remove, but still needed that cheater bar leverage to break things loose.

My goal was to replace the solenoid plunger and contacts to eliminate some 'dead spots' which were keeping the starter from even clicking or spinning. I bought this repair kit on eBay pretty cheap. When I removed the copper contacts, they were indeed work way down and the solenoid plunger was pretty corroded. Even though my mileage isnt too high (140k), I'm the original owner and this has been my daily driver for the past 23 years. So, I'm sure these contacts were well used.

Many thanks to BTWilson86's info above! I'm not sure how long it would have taken without them.
robdiehl is offline
Old 05-31-2010, 04:17 AM   #9
batmmannn
