Default No heat? The two most common problems HCV VSV and blower resistors.

The thread previously in the FAQ was littered with speculation and other troubleshooting so I've removed it and am posting just the information on how to check/fix/patch these two common issues.

Heater Control Valve Vacuum Switching Valve - HCV VSV

This little gem is mounted to the passenger side of the firewall (I assume that's correct for LHD vehicles as it is for RHD). The control assembly is mounted above and is easily recognized by the metal diaphragm can or bell which sits atop a VSV (see pictures below). Failure of the HCV itself is uncommon; Often the failure is the VSV. Diagnosis is simple:

1) Turn off the car and make sure the A/C is OFF.
2) Look at the HCV and not the location of the valve's control armature.
3) Turn the car on (or better yet have someone do it for you and check the armature's position again. If it hasn't moved and the engine is cool enough (don't burn yourself) you may try to move it manually... I recommend you do this with the engine OFF.
4) If the valve can be opened manually but does not open when the engine is running then you may try the VSV bypass described below.

Heater Control Valve and coolant routing:
Click image for larger version

Name:	AH.jpg
Views:	1654
Size:	60.6 KB
ID:	4483

HCV VSV bypass:
Click image for larger version

Name:	correct_bypass_heater_vsv[1].jpg
Views:	1622
Size:	38.7 KB
ID:	4484

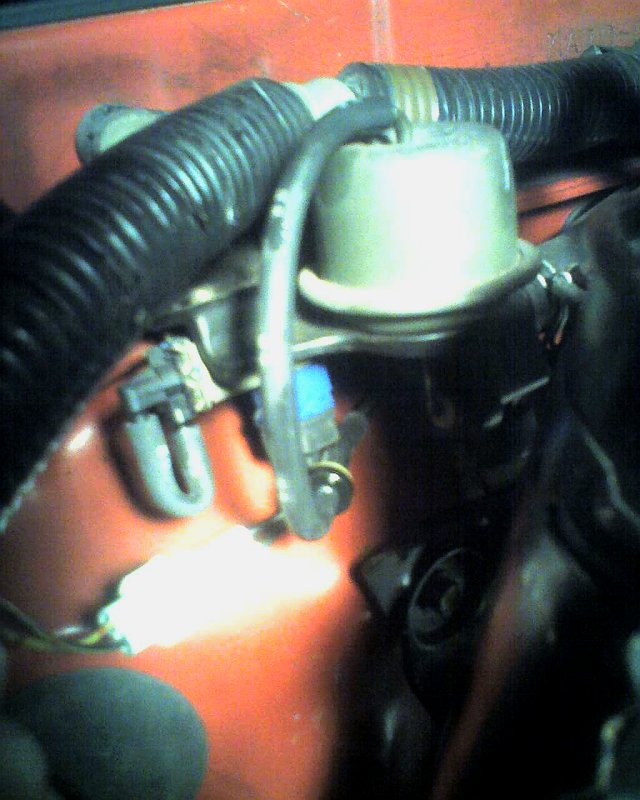

HCV VSV and Diaphragm (stock and bypassed):
Click image for larger version

Name:	Heater core vsv stock.jpg
Views:	2844
Size:	83.2 KB
ID:	4485 Click image for larger version

Name:	Heater core vsv bypassed.jpg
Views:	1797
Size:	89.1 KB
ID:	4486

Alternate mirrors of this information:
http://www.supras.com/06/techcenter/display.php?QID=67
http://www.ddmcse.com/turbo/heatervs.htm
http://www.toyota-supra.info/forums/...-problems.html

Heater Blower Resistor:

This is another common problem. There is a basic wire coil resistor cluster which sits within the blower duct behind the glove box; This is used to regulate blower speed and is cooled by the air moving through the duct. There is one coil for each speed: Low, Medium and High. These coils do tend to burn out over time. The replacement unit isn't very expensive (not last I checked anyway) and it's very easy to swap.

(Follow the first link below the image for complete instructions.)



http://www.rclambert.com/supra/blowe...%20removal.htm
http://www.cygnusx1.net/Supra/TechTips/blower_resistors.aspx
http://www.supras.com/06/techcenter/display.php?QID=56

Last edited by cre; 03-11-2012 at 09:56 AM.
cre is offline   Reply With Quote
Old 02-25-2012, 08:11 AM   #2
bandit1730
Stock

Join Date: Feb 2012
Location: Miami, FL
Posts: 2
bandit1730 is on a distinguished road
Default $35.00 Low-Cost Toyota Solution to VSV replacement

Had the same problem with the VSV solenoid being busted on my 89 turbo. Searching on the net, came around this post http://www.supras.com/06/techcenter/display.php?QID=58 . The part costs around $35.00 from Toyota (for Camry). It is the same solenoid, but the connector is different. Just cut the old VSV connector/wire as close to the VSV as possible and solder two standard female connectors (like the ones used on speakers) and you are good to go on the freezing cold.

Toyota part # 88690-32280
bandit1730 is offline   Reply With Quote
Old 06-28-2013, 10:04 AM   #3
Life is Supra
3" Exhaust

Join Date: Apr 2010
Location: Serbia
Posts: 51
Life is Supra is on a distinguished road
Default

Thanks guys for helping Supras to stay alive.
