Default 87 NA Coolant Line Diagram

Can anyone help us with finding a coolant line diagram for a 87 NA ? I have coolant leaking out of the driver side below the intake manifold and can not find where it needs to be hooked up to ?


Thanks
kurth is offline   Reply With Quote
Old 10-02-2011, 12:17 AM   #2
907mge
20psi boost

907mge's Avatar

Join Date: Dec 2009
Location: Harrisburg
Posts: 759
907mge is on a distinguished road
Default

http://www.cygnusx1.net/Supra/Librar...spx?F=1603&P=1
907mge is offline   Reply With Quote
Old 10-11-2011, 11:56 PM   #3
jgentleman
Stock

Join Date: Oct 2011
Location: La Center, WA
Posts: 5
jgentleman is on a distinguished road
Default Cooant line

I received a 7MGE which was halfway through the head gasket job. I would like to know where the coolant hose labeled 16267 in this drawing connects on the top side. The other side goes to a 10mm-ish metal pipe near the starter.

http://www.cygnusx1.net/Supra/Librar...spx?F=1603&P=1
jgentleman is offline   Reply With Quote
Old 10-12-2011, 09:15 PM   #4
jgentleman
Stock

Join Date: Oct 2011
Location: La Center, WA
Posts: 5
jgentleman is on a distinguished road
Default Coolant mystery line..

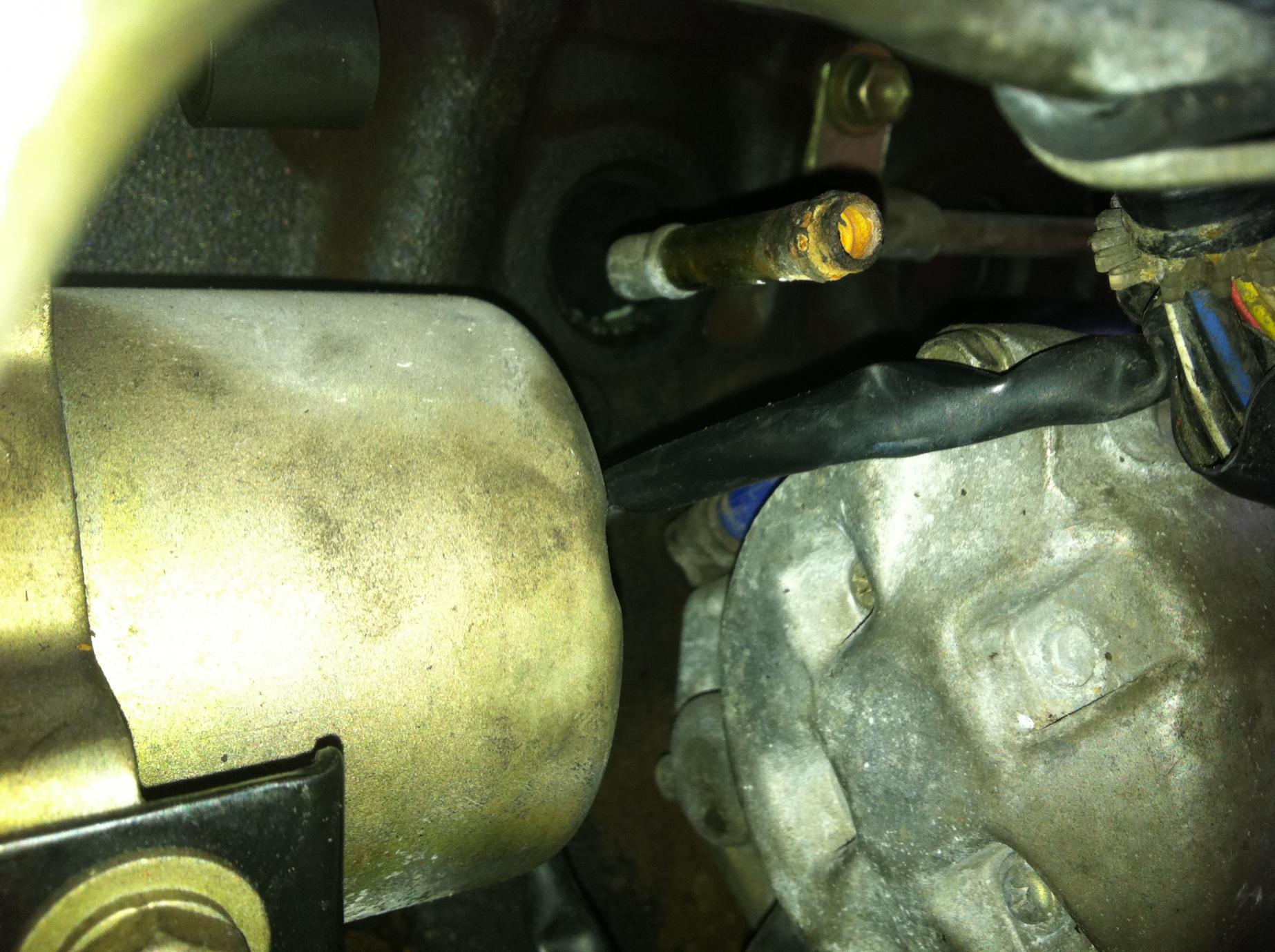

This is the line I am talking about. I just need to know where it goes. 1988 Supra NA 7MGE.
Attached Thumbnails
Click image for larger version

Name:	supra 001.jpg
Views:	690
Size:	294.7 KB
ID:	4270
jgentleman is offline   Reply With Quote
Old 10-13-2011, 12:33 AM   #5
El Supracabras
3" Exhaust

El Supracabras's Avatar

Join Date: Feb 2010
Location: Chicago
Posts: 240
El Supracabras is on a distinguished road
Default

Throttle body?
El Supracabras is offline   Reply With Quote
Old 10-13-2011, 01:41 AM   #6
cre

Toyota
Racing
Development

cre's Avatar

Join Date: Apr 2007
Posts: 5,038
cre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond repute
Default

Yup. To the firewall side of the TB, then out from the forward side of the TB to the ISCV and then from the ISCV to the nipple on the lower intake runner flange.
__________________
If something breaks or you need to contact a member of the administration please post HERE. Unless it's a private or administration matter please post it on the forum. It benefits no one else if car related questions aren't posted for future users and takes away from the time I'm able to spend helping on the rest of the forum.

If you're so inclined I'm always more than happy to accept tips via PayPal.
Tip Jar --->
cre is offline   Reply With Quote
Old 10-14-2011, 10:03 PM   #7
jgentleman
Stock

Join Date: Oct 2011
Location: La Center, WA
Posts: 5
jgentleman is on a distinguished road
Default Thank you.

Thanks, guys. It did go to the intake but that hose had been crammed on to the vacuum connection for the brake booster. Everything is cool now.
