ouch.... LOL

anyways...

I dont ever remember saying "my cams dont line up"....because they do. perfectly. I triple checked my valve timing, AND my ignition timing.

I really dont appreciate "my88isgreat" implying that I didnt "read the book".
so.... not to mention that he said "gates racing is in on it too" does that mean they built your engine for you? cuz i built mine all by myself.

Thanks CRE for the useful information. I swapped out the fuel pump relay and resistor with another one and it didnt change anything. I also put a jumper wire on the TPS connector and checked my fuel cut. according to the TSRM (that i actually read ;-) my fuel cut should be at 1800 then return at 1200. My actual fuel cut is at about 2400 and returns at about 1900. This is actually the only thing i can find "wrong" with the car.

advice?

oh and how do you bypass the relay? by connecting a jumper between +B and PR on the fuel pump relay connector? thanks!!
__________________
86.5 Supra NA: milled head .020, decked block .007, .5mm+ pistons, port & polished intake manifold and cyl head,OBX header, 3-angle, cold air intake, Cometic MLS HG. ALL NATURAL!

CHEVROLET- Cracked Heads, Every Valve Rattles, Oil Leaks Every Time

FORD- Flipped Over, Rebuilt Dodge

DODGE- Dirty Old Dust Gathering Engine

I'd rather drive a Toyota, than push a ford.
El_supracabra is offline   Reply With Quote
Old 04-05-2011, 10:25 PM   #22
My88isGREAT
Stock

My88isGREAT's Avatar

Join Date: Mar 2011
Location: somewhere
Posts: 15
My88isGREAT is on a distinguished road
Default

Quote:
Originally Posted by El_supracabra View Post
not to mention that he said "gates racing is in on it too" does that mean they built your engine for you?
Yes they did! thanks for asking!
__________________
I don't even own a car, just here for the moral support and friendly people. The Dr. said its good for me. Have a supra day!!
My88isGREAT is offline   Reply With Quote
Old 06-04-2022, 05:49 PM   #23
pishta
Stock

Join Date: Jun 2022
Location: California
Posts: 1
pishta is on a distinguished road
Default

Quote:
Originally Posted by 907mge View Post
The 7mge is a non interferance motor to begin with, so no. The only thing it will do is raise the compression a bit.
Wrong...the cam timing will be retarded because the cam cog will be closer to the crank cog and will roll CCW a smidge. You can only mill an OHC about .02mm before you need to cut and use a "head saver" shim. these are usually .020" an allow a .020 cut on the head or block to preserve factory valve timing.
pishta is offline   Reply With Quote
Old 06-04-2022, 07:18 PM   #24
Bru
Bone Stock w Upgrades ;-)

Bru's Avatar

Join Date: Apr 2010
Location: Tampa Bay
Posts: 199
Bru is on a distinguished road
Default

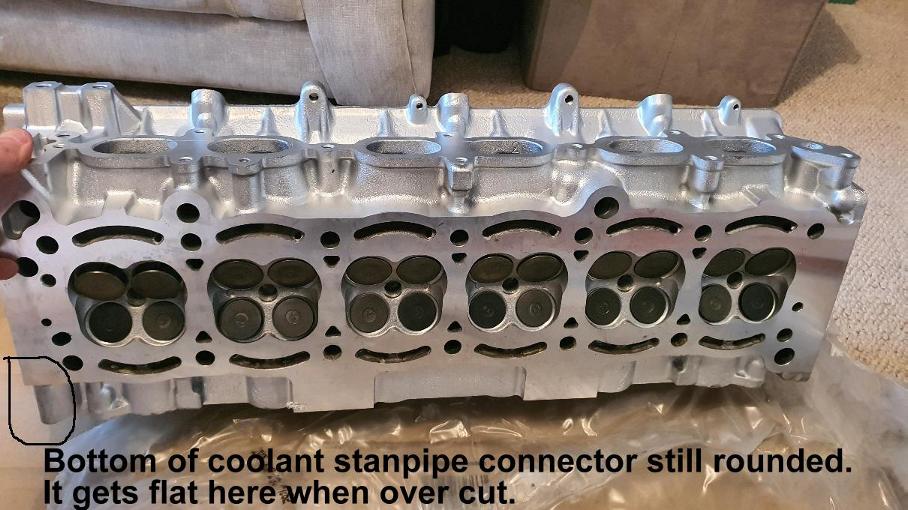

Here are some photos of a uncut and a cut head. The more you cut a head the flatter that rounded part under the thermostat standpipe connection gets. It's something to look for when buying a head. I had my head and block resurfaced and ended up using an old school metal shim gasket under the Toyota factory gasket. I sprayed the bottom of the shim gasket That contacts the block with Prematex copper spray. After 7 years and 35K miles, I haven't had any issues. Alternatively, you could use a thicker stacked metal head gasket alone but you really need to prepare the surfaces first. Here is a link to a company that can supply most any thickness of shim gasket you want. I wouldn't go of more than 0.040" though. It's been discussed in other forums that a 0.020" cut is a small fraction of a degree out of timing. The Toyota manual allows 0.010 but doesn't say anything more than that.

Innovative machine & supply: https://innomach.com/cylinder-head-shims
Attached Thumbnails
Click image for larger version

Name:	7M head.jpg
Views:	26
Size:	88.3 KB
ID:	5066   Click image for larger version

Name:	cut head.jpg
Views:	30
Size:	125.2 KB
ID:	5067

Last edited by Bru; 06-04-2022 at 07:24 PM.
Bru is offline   Reply With Quote
Old 06-06-2022, 03:03 AM   #25
cre

Toyota
Racing
Development

cre's Avatar

Join Date: Apr 2007
Posts: 5,038
cre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond repute
Default

WOW! Resurrected after over 11 YEARS!?!
