Default 7mge replace

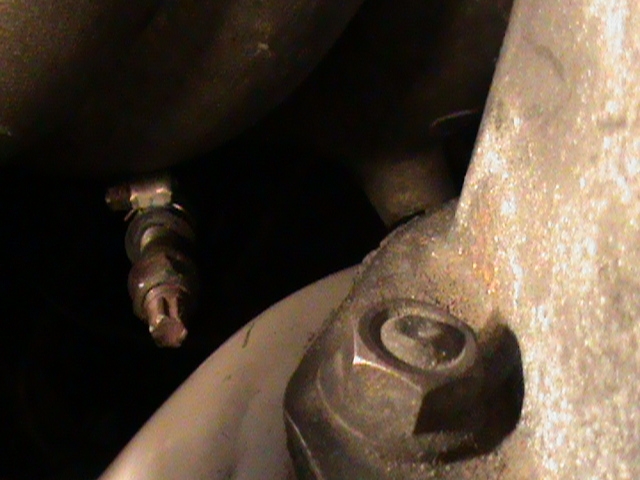

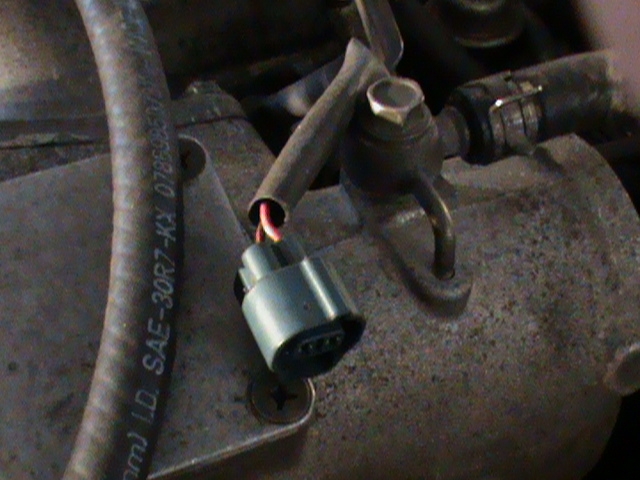

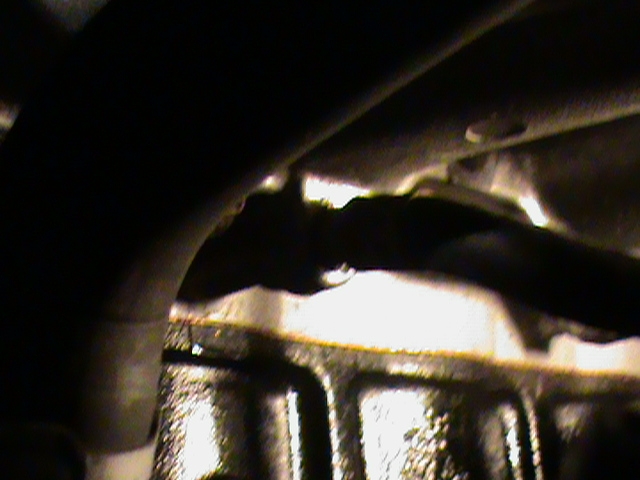

I am reinstalling the motor in the Supra I have a couple of issues. I have one wiring plug that I cannot figure out where it goes. I also have one small hose. with coolant from the head that I dont know where the othe end goes. I really need a better maual can I still get a "shop" manual from Toyota/ If not where can I get one with more detail in it? I have pics of the plug and hose but I am not smart enough to load them here? LOL ok figured out the pic thing #1 is where hose attaches to head this is toward front #2 Is plug this is towards rear of motor #3 is end of hose with a plug in it THANKS FOR THE HELP!!!
Attached Thumbnails
Click image for larger version

Name:	toyotaengine1 pics.JPG
Views:	205
Size:	178.6 KB
ID:	2805   Click image for larger version

Name:	toyotaengine2 pics.JPG
Views:	194
Size:	207.7 KB
ID:	2806   Click image for larger version

Name:	toyotaengine3 pics.JPG
Views:	193
Size:	191.2 KB
ID:	2807

Last edited by scarylarry; 02-25-2010 at 06:20 AM. Reason: explain pics
scarylarry is offline   Reply With Quote
Old 02-25-2010, 06:37 AM   #2
cre

Toyota
Racing
Development

cre's Avatar

Join Date: Apr 2007
Posts: 5,036
cre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond repute
Default

The coolant hose connects to the bottom coolant port on the ISCV (Idle Speed Control Valve). There's another nipple on top of the ISCV which runs to the throttle body and then there's another nipple on the throttle body which runs down to the metal hard pipe assembly near cylinders 5 and 6. So... the hose in front --> ISCV --> Throttle Body --> the plugged hose in back.

What colors are the wires running to that connector? Given it's location and that the wires look red and/or brown I'd hazard a guess that it's for the EGR VSV; Should be mounted under the intake plenum toward the rear. See 25860 here: http://www.cygnusx1.net/Supra/Librar...spx?F=1708&P=2
