7MGE Engine rebuild

[oregonjoe]

Picked up clutch. $200 for pressure plate, disk, throw out bearing, pilot bearing, and alignment tool. Had the old flywheel resurfaced by the shop.



Forgot to pull out old pilot bearing on the crank before the shop work was done so I had to pull it myself but did not have a tool. Remembered an old technique for years past – packed the pilot hole with grease and used a 3/8” socket extension and hammered into hole. The hydraulic pressure of the grease from behind pushed out the bearing. Took 4 hits with grease repack but it came out pretty smooth. Put new bearing in with a ?” socket just tapping on the edge of the bearing.



Mounted the new clutch and aligned the disk with the tool. The book says to torque the clutch pressure plate to 15 pounds but that seemed kind of low. I thread sealed the flywheel and clutch bolts anyway.

Now it was time to chain up the block and lift it back into the car. I am dong the block with out the head because it’s easier to move around and get in a do the bell housing bolts without the head on. I was concerned about alignment with the transmission shaft as it seemed real easy to snap it off if things were not aligned right when lifting the block back in.



Now – a few things I learned. First, put the two top bell housing bolts in before doing anything. I found it impossible to get them in after the transmission was jacked up to the firewall which you need to do to get the right angle to join with the block. Second, jack up the transmission all the way to the firewall to get a better angle. When you lift the block in, the front of the engine is about 30 degrees up from the rear so the oil pan can clear the lower support beams. Here is the important part – unbolt the clutch slave cylinder from the bell housing so the clutch fork is able to completely retract. It took me almost 2 hours in trying to match the block and transmission and not getting them together until I realized the clutch fork/throwout bearing was trying to engage the pressure plate that no mere human can push against. Disconnecting the slave cylinder allowed the clutch to slide in over the shaft with no pressure – SIMPLE.



When I removed the engine, I unbolted the two support mounts from the block and not the frame – it was just easier due the angle of the frame bolts. On reassembly I bolted the transmission on before attaching the engine mounts – bad idea. It is impossible to put the mounts back on after the engine is set in unless you undo the frame bolts from below which I was trying to avoid in order to not mess with the alignment. In hind sight I should have placed the engine mounts on the frame before lifting in the engine. Oh well – it only took another half hour under the vehicle to fix this.



A side note – After the block was in and the engine mounts tightened (total of 4 hours) I put a socket on the crank shaft and turned the engine to see if there was no binding and that the transmission and clutch were all still working After a few cranks I heard a loud POP! OH NO! sounded like I had just snapped something off. Im thinking something in the transmission?, Crank?, Piston? Anyway, just like anyone else, since I can’t figure out what it was – I just do it again! A few more cranks and again the loud POP. This time I notice the protective covering I had on the block deck to keep it clean was pushing out like a big balloon. Seems I had it strapped in tight enough that it created a seal so when the piston pushed up – it blew it out with a nice pop. Good news is that the engine works!

Now I get to go under and finish bolting in the bell housing and stiffeners

[Blackdog]

wow nice report, I vote for a sticky!! lots of good tips in here. Its almost like reading a step by step haha Thanks man!! hope it all works out for you!


STICKY!!!!!!!!

[Bill UK]

Totally agree excellent work, thanks for sharing it with us, top marks for the write up which must have taken time to document.

[oregonjoe]

Thanks for the kind words - just trying to support the form so all can benefit.

Got all my parts finally on order. ARP Head studs from www.horsepowerfreaks.com their number part number 8021 $134.26. HG, Timing Kit and Water Pump from CarQuest.

Will be here by end of week so I can start on the top end.

In the meantime – still cleaning parts and bead blasting.

[oregonjoe]

While I was waiting for my head to come back from the shop, I worked on cleaning parts and doing some detail work. A friend let me come over and use his bead blaster to clean up the valve covers and intakes. Boy – what a fun gadget to have! Make everything look like new. Uses air pressure to shoot tiny glass beads and reach into all the places you can get sandpaper in. After about three hours, I had some nice looking parts. So nice in fact, I decided not to paint them like the original but just to clear coat them and keep the natural aluminum finish.

For the valve covers, I masked them painters tape and used several new razors and traced the relieved outlines make a cutout. Pressed the making tape hard along the edges to expose the outlines and cut away the material. Be sure to clean everything with Lacquer thinner before you mask.




Then spay with high temp paint in several very light passes. The trick is to get the paint carrier to evaporate between each pass which takes just a few minutes. It took about 10 very light passes to get it built up enough. The reason for this is that if you spray too heavy, the paint just builds up in the depressions and flows overt he top of the masking which is not what you want because when you try to remove the mask it will just tear the paint off with it. What you are trying to do is keep the paint just in the relief’s and not on the surface of the mask. Another thing I found is that the initial passes doesn’t stick to well and paint tends to run down hill. By lighter coats and waiting in between, it gets tacky and then next coats stick better.

Now here is the important part, do not let the paint dry. Wait only about 20 minutes after the last coat to peel off the masking. Again, if you wait too long, the making will be too embedded with the paint and just peel the paint off or tear the masking so you can’t get it off. Doing this while still wet (tacky) makes it real easy and gets a clean surface.

Once the mask is removed just a little cleanup is needed with some lacquer thinner and a CLEAN rag. Because the paint is just in the relief, any other paint can be removed by warping the rag around your finger and just wiping the surface – comes off real easy and leaves a nice clean edge.

When done with the clean up I sprayed several coats of clear high temp paint to give the surface a nice look and protect the aluminum from corrosion. The clear coat also helped clean up the lettering and make them stand out.



All the other aluminum parts a coat of clear coat too.

[oregonjoe]

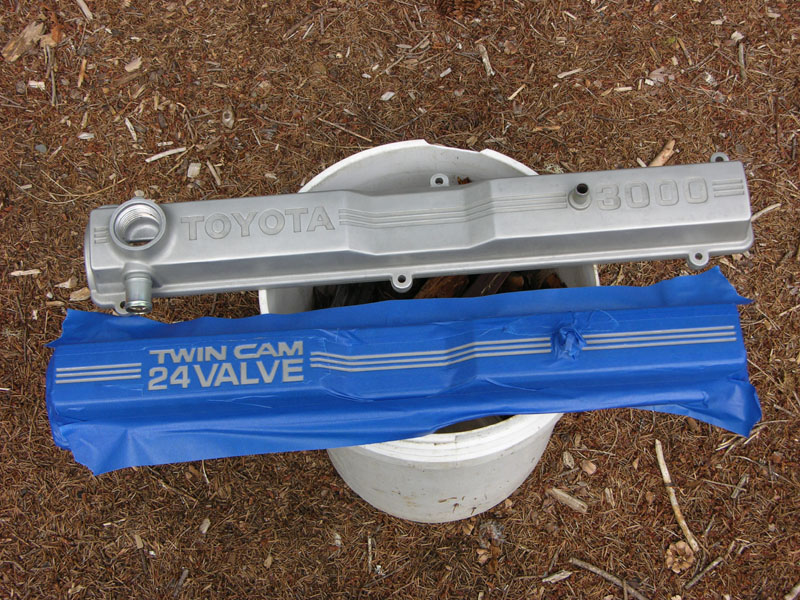

Heare isa closeup of the cover

[oregonjoe]

Finally got the head back from the shop. Don’t want to say how much it cost!

Anyway – valve seats were done and adjusted.



I wanted to check the oil clearance on the cams so I pulled them off and used plasticgauge to find out. Put strips on the cleaned journals and torque back down. Came out to .0015 which is well within spec.



Cleaned off plasticgauge and reassembled again.



Boy – are these cams hard to turn or not? I had no idea it would be so tight but with each cam trying to open 12 valves in one revolution no wonder? Anyone know how much torque it takes to turn a normal cam? Really makes you wonder is everything is true and straight and if the bearings are binding or not? Sure hope the shop did it right!

[Bill UK]

$583 for the head refurbishment at a guess, just make sure there’s no beads left inside the cam covers. Its also very common to have radial score marks on some of the cams and journals which shouldn’t be a problem.

[oregonjoe]

Originally Posted by Bill UK

$583 for the head refurbishment at a guess, just make sure there’s no beads left inside the cam covers. Its also very common to have radial score marks on some of the cams and journals which shouldn’t be a problem.

Well now I don't feel as bad for the $400 it cost me. And yes there were some score marks on the CAM journals which the shop said not to worry about. But one questions is - how diffucult should the CAMs be to turn when all torqued down? I supose it would have been good to have assembled everthing with out the valves so we could feel how smooth the cams turned without resistance. Just have to trust the shop?

With the CAMs and head on the block - they can be turned by hand but sure feels strange when all th lobes engage the tappets.

Funny thing is - my very first car I every worked on was a 69 English Rover Sedan with overhead CAM and timing chain - twin carbs too!

[oregonjoe]

Ready for the head. So I read through the directions for the STUDS and put them finger tight into the block. I had read it would be difficult to get he head on with the rear studs so I leave them out.

Now, what is wrong with this picture?



The answer is it is impossible to put the head on with the studs in the block. I don’t difficult – I mean impossible even with a single stud.

Oh – you can place the head on over the studs – you just can’t put the washers on afterwards. Once the studs stick up through the head it is impossible to place the washes on - just not enough clearance.

The trick is to not install the studs first. You should test fit them to be sure the treads are clear and they all seat at the same (correct) height but remove them.

Place the down on the block as normal. I coated both sides of the gasket with copper spray adhesive. And don’t forget to put the bead of RTV on the front of the block between the timing cover assembly and the head as documented in the manual.

Next, starting from the Middle and sequencing out as described in the manual for head boat tighten sequence, place the washer on the end of the stud and then lube the other end with the ARP assembly lube before adding the nut. I threaded the nut down all the way and back out to be sure the lube got all over the threads. And yes, there is enough lube in the packet to do all the studs so no need to skimp. Check to be sure the hex socket is on the nut end of the stud. Now with the washer on the block end of the stud, place them on the head. The washer will not go down at first but you can slide the stud left or right to clear the head bosses and get the washer to fall into place then get the stud into the hole. Now use the hex driver to secure the stud finger tight. Next you just use a deep 12 point 14 mm socket (3/8” drive and ?” is too big) to tighten down the already installed nut. I tried to place the nut on the stud after inserting the stud but its just too hard to get it in there with dropping into the head and having to fish it back out. Much easier to just put the nut on first.

I then sequence tighten the stud nuts to 90 pounds as the ARP instruction said. Took 5 passes but they all torque very smoothly.

Took me 4 hours to put the head on but that was because I had to figure this all out. Now that I know what to do – it can be done in under an hour.



Now it on to the timing stuff.
