Default Vacuum tube placement?

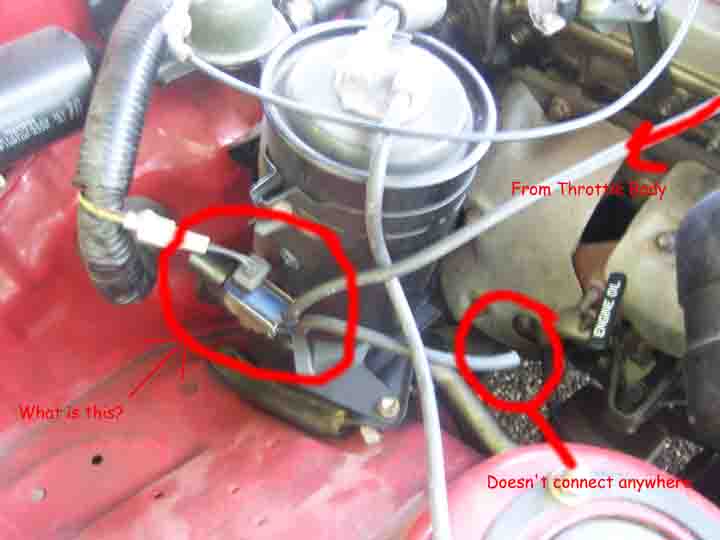

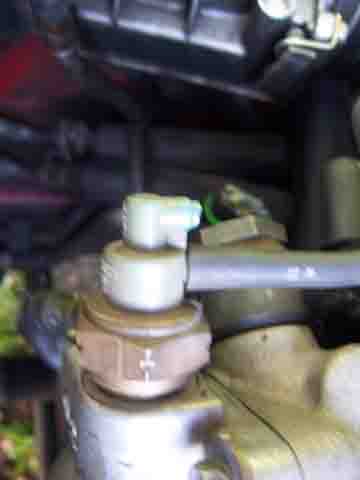

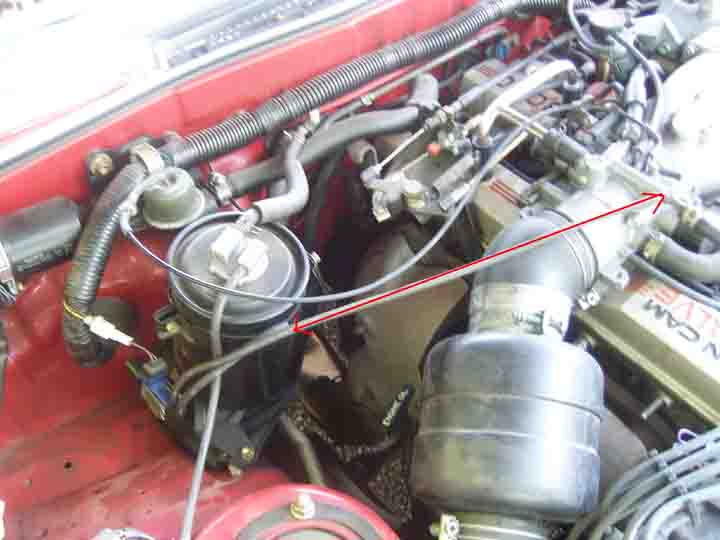

The top nipple on the thermostat housing bvsv is broken off and the vacuum hose from the throttle body that would usually connect here is connected to something that im not sure what it is (see pics)

The car was like this when i got it and i am not sure why, does anyone know why someone would hav set it up like this and what their reasoning might be? and wat is that thing th throttle body is connected to through the vacuum hose that would normally feed to the charcoal canister thru the bvsv?
Attached Thumbnails
Click image for larger version

Name:	BVSV closeup broken.jpg
Views:	205
Size:	10.6 KB
ID:	1038   Click image for larger version

Name:	Vacuum thing placement 2.jpg
Views:	226
Size:	28.6 KB
ID:	1039   Click image for larger version

Name:	Vacuum Thing placement.jpg
Views:	278
Size:	23.8 KB
ID:	1040
atsomepoint is offline   Reply With Quote
Old 09-08-2007, 08:50 PM   #2
atsomepoint
Stock

Join Date: Jul 2007
Location: WA
Posts: 14
atsomepoint is on a distinguished road
Default

Also, there is a vacuum hose that runs off of the unknown part that doesnt go anywhere (just left hangin open?)
Any idea wat thats about? (Again see pic)
thnx
atsomepoint is offline   Reply With Quote
Old 09-08-2007, 10:05 PM   #3
mrnickleye
Old Cowboys Never Die !!

mrnickleye's Avatar

Join Date: Jun 2005
Location: Mojave Desert, Calif.
Posts: 1,705
mrnickleye is on a distinguished road
Talking Ideas ??

Yes, I have some ideas about all this.
__________________
Had a Red 1989 N/A. Automatic. Sports Pkg. w/wing.
TEMS, and some nice MODS. Sold to a friend 10/08/08.
mrnickleye is offline   Reply With Quote
Old 09-09-2007, 12:22 PM   #4
IHateHacks
20psi boost

IHateHacks's Avatar

Join Date: May 2006
Location: New Haven/Hamden
Posts: 793
IHateHacks is on a distinguished road
Default

Thats some hack shit. Buy a new BVSV, hook the charcoal canister up and throw that thing away. It looks like a stock VSV that connects under the intake manifold but the connector is way different.
IHateHacks is offline   Reply With Quote
Old 09-09-2007, 09:35 PM   #5
mrnickleye
Old Cowboys Never Die !!

mrnickleye's Avatar

Join Date: Jun 2005
Location: Mojave Desert, Calif.
Posts: 1,705
mrnickleye is on a distinguished road
Default

OK. I'm back today. The wired vsv is for the heater water control valve.

You can 'save' the bvsv by using a hacksaw, and carefully cut away the support material between the 2 ports. Then you can place the vacuum hose on there. It will be a bit larger port, but the hose will fit, and stay in place. (ask me how I know this, for 5 successful years and going).

There are vacuum diagrams on this forum. do a search.
__________________
Had a Red 1989 N/A. Automatic. Sports Pkg. w/wing.
TEMS, and some nice MODS. Sold to a friend 10/08/08.
mrnickleye is offline   Reply With Quote
Old 09-11-2007, 10:27 PM   #6
atsomepoint
Stock

Join Date: Jul 2007
Location: WA
Posts: 14
atsomepoint is on a distinguished road
Default

Ok, thanks guys. After many a vacuum line diagram i got almost everything back how it should be. And now my cruise control works, who knew.
O, and i took the hack saw to the bvsv just like you said and it worked like a charm.
But that vacuum switch that i have a pic of (heater water control valve?) is no connected to nothing whatsoever and i cannot find a diagram that includes it or any open spots for where vacuum tubing could go.
atsomepoint is offline   Reply With Quote
Old 09-12-2007, 03:27 PM   #7
mrnickleye
Old Cowboys Never Die !!

mrnickleye's Avatar

Join Date: Jun 2005
Location: Mojave Desert, Calif.
Posts: 1,705
mrnickleye is on a distinguished road
Default

I've never found a diagram either. The long vacuum line comes from a "T" off the cruise control line.

The short one goes to that water valve mounted on the bracket at passenger firewall. The coolant 'always' flows to heater core...except when you have the temp on the dash set to 65*, then the vsv gets power to shut off the water flow.

for a bit colder a/c operation.
__________________
Had a Red 1989 N/A. Automatic. Sports Pkg. w/wing.
TEMS, and some nice MODS. Sold to a friend 10/08/08.
mrnickleye is offline   Reply With Quote
Old 09-15-2007, 03:46 AM   #8
atsomepoint
Stock

Join Date: Jul 2007
Location: WA
Posts: 14
atsomepoint is on a distinguished road
Default

Hey, finally got it all worked out, thnx for ur help. From what i can tell theres not a significant difference, but on the bright side, now my cruise control is working.
atsomepoint is offline   Reply With Quote
Old 09-19-2007, 01:48 AM   #9
atsomepoint
Stock

Join Date: Jul 2007
Location: WA
Posts: 14
atsomepoint is on a distinguished road
Default

Ok, i'm back. My car has been running pretty crappy as long as i can remember so i finally checked the timing, (shouldve been one of the first things i did) and it was like 10* off, so i readjusted it and now it runs far better.
Only concern i have is now there is an odd vacuum noise whent he car is running. Loud enough i can hear it over the engine in the car.
Checked it out and the sound is coming from the heater core vsv that you told me to plug into. I tracked the suction back to the where the cruise control line T's and enters the intake manifold.
Is this supposed to be happening or do i have reason to be concerned, and what can i do to fix it?

Also, this is all assuming that ive understood correctly where all those vacuum lines should go
atsomepoint is offline   Reply With Quote
Old 09-19-2007, 04:28 PM   #10
mrnickleye
Old Cowboys Never Die !!

mrnickleye's Avatar

Join Date: Jun 2005
Location: Mojave Desert, Calif.
Posts: 1,705
mrnickleye is on a distinguished road
Default

Take that vacuum line and, while looking at the little arm on the valve, plug it in and out and see if the arm goes up and down. Also, the valve may have a bad diaphram and is what you hear. Cap off the vacuum hose with a golf tee and see if the hiss goes away.
