Fog Lights???????

Dejvid1785 · 09-10-2005, 03:12 AM

Does anyone know how to rewire the fog lights so they turn on alone without the headlights. Somebody please help i see soo many on car domain with just the fogs on and it pisses me off cuz i can't figure out how they make it work?

Poodles · 09-10-2005, 06:33 AM

Here I come to save the day!!

I to was trying to figure out how to do it, as I couldn't access the supraforums where I KNOW there is a list of mods that are cheap (fog light mod included) I went looking everywhere else. Someone gave me the link to shimming my wastegate..and from there, I found out how to do it. Here's the link to the contents, as the FAQS to doing it are year specific.

http://www.supras.com/06/techcenter/...5414c12a8f69c8

suprra_girl · 09-10-2005, 10:34 AM

and ours do that stock

buahahahahahaa

JDM TYTE YO!

joel w · 09-11-2005, 04:45 AM

[QUOTE=Poodles]Here I come to save the day!!

awsome supra mod/fix page. thxs poodles

Poodles · 09-11-2005, 05:52 AM

Bah, JDM is great...they keep all the good stuff for themselves, like the cooler brake lights, mirrors, CARS (WHERE IS MY SKYLINE?!??!), ect...

I'd love to see the Skylines come over here and really shut these AMERICAN POWER people up. I'm so sick of being called a "ricer," especially after I make them look stupid light to light...

Dejvid1785 · 09-13-2005, 08:42 PM

Can anybody sum up on how to rewire that stuff, i installed a remote start system on my supra and there are soo many wires down there under the dash!!!! I'm lost. Where is the f/l relay located anyway. In those directions it says tape off the dash side, in other words just tape it off and its not gonna be used anymore right? Also when they say ( I used the bottom side of the Tail fuse). Which fuse is that? Somebody help, i'm sure u guys have done this before.

joel w · 09-15-2005, 09:36 PM

actually mine did not work at all when i got my car and i had to take the driving light switch apart and clean the contacts, then looking at it all i did was solder on a jumper piece of brass to modify what get powered by the toggle bar inside the switch. so now when i turn on parking lights, i can run driving lights too or just driving lights, and when i turn on headlights the drivers lights go off. then if i turn my headlights on hi beam they automatically turn on driver lights. or i can flip the switch and they will come on with low beam and go off with hi beam. not sure what its supposed to do stock, but i like this setup. if you want i can take a picture of what i did to the switch inside?
just ask..

Dejvid1785 · 09-16-2005, 03:25 AM

If u can i'd appreciate it, i don't know if it makes a difference between the 88 model and the 89 cuz mine is a 88

Poodles · 09-16-2005, 04:07 AM

Mine come on as long as the key is on, I use em as DRL's

joel w · 09-16-2005, 05:14 AM

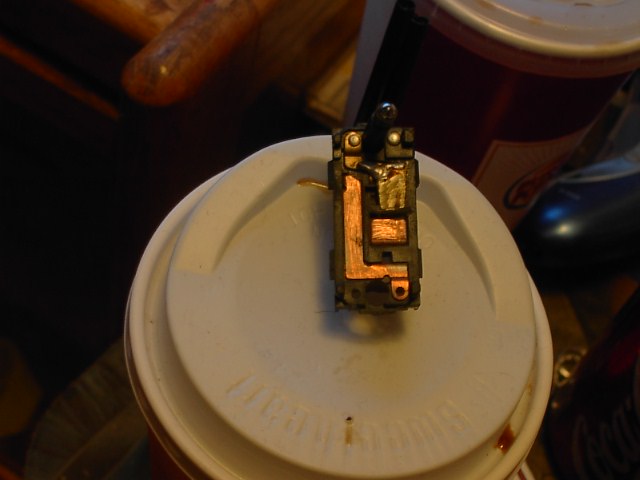

ok now that i have it apart i think it would be easier to just jumper the top two wires together instead of pulling the switch apart but i am not 100 percent sure. here is the best pik i can offer. its the back of the switch and the odd color brass on the top right corner is the piece i added. it basically conects the top two terminal or wires together. if you do take the switch apart, be carefull not to lose the spring and ball bearing in the opposite side. let me know if this help ya

09-10-2005, 03:12 AM	#1
Dejvid1785 3" Exhaust Join Date: Aug 2005 Posts: 193	Fog Lights??????? Does anyone know how to rewire the fog lights so they turn on alone without the headlights. Somebody please help i see soo many on car domain with just the fogs on and it pisses me off cuz i can't figure out how they make it work?

09-10-2005, 10:34 AM	#3
suprra_girl 7M POWAH! ;) Join Date: Jun 2004 Location: New Zealand Posts: 2,312	and ours do that stock buahahahahahaa JDM TYTE YO! __________________ Please use the forum to ask your questions as they will get replied to much faster than pming me Pics of my build. "Good girls are just bad girls that don't get caught" Do a diagnostic first!

09-11-2005, 04:45 AM	#4
joel w Lexus & 550's Join Date: Aug 2005 Location: In the shadows Posts: 506	nice link [QUOTE=Poodles]Here I come to save the day!! awsome supra mod/fix page. thxs poodles

09-15-2005, 09:36 PM	#7
joel w Lexus & 550's Join Date: Aug 2005 Location: In the shadows Posts: 506	driving lights actually mine did not work at all when i got my car and i had to take the driving light switch apart and clean the contacts, then looking at it all i did was solder on a jumper piece of brass to modify what get powered by the toggle bar inside the switch. so now when i turn on parking lights, i can run driving lights too or just driving lights, and when i turn on headlights the drivers lights go off. then if i turn my headlights on hi beam they automatically turn on driver lights. or i can flip the switch and they will come on with low beam and go off with hi beam. not sure what its supposed to do stock, but i like this setup. if you want i can take a picture of what i did to the switch inside? just ask.. Last edited by joel williams; 09-15-2005 at 09:42 PM. Reason: typo error

09-16-2005, 05:14 AM	#10
joel w Lexus & 550's Join Date: Aug 2005 Location: In the shadows Posts: 506	piks ok now that i have it apart i think it would be easier to just jumper the top two wires together instead of pulling the switch apart but i am not 100 percent sure. here is the best pik i can offer. its the back of the switch and the odd color brass on the top right corner is the piece i added. it basically conects the top two terminal or wires together. if you do take the switch apart, be carefull not to lose the spring and ball bearing in the opposite side. let me know if this help ya Attached Thumbnails

09-10-2005, 06:33 AM	#2
Poodles 12psi boost Join Date: Jul 2005 Posts: 348	Here I come to save the day!! I to was trying to figure out how to do it, as I couldn't access the supraforums where I KNOW there is a list of mods that are cheap (fog light mod included) I went looking everywhere else. Someone gave me the link to shimming my wastegate..and from there, I found out how to do it. Here's the link to the contents, as the FAQS to doing it are year specific. http://www.supras.com/06/techcenter/...5414c12a8f69c8

09-11-2005, 05:52 AM	#5
Poodles 12psi boost Join Date: Jul 2005 Posts: 348	Bah, JDM is great...they keep all the good stuff for themselves, like the cooler brake lights, mirrors, CARS (WHERE IS MY SKYLINE?!??!), ect... I'd love to see the Skylines come over here and really shut these AMERICAN POWER people up. I'm so sick of being called a "ricer," especially after I make them look stupid light to light...

09-13-2005, 08:42 PM	#6
Dejvid1785 3" Exhaust Join Date: Aug 2005 Posts: 193	Can anybody sum up on how to rewire that stuff, i installed a remote start system on my supra and there are soo many wires down there under the dash!!!! I'm lost. Where is the f/l relay located anyway. In those directions it says tape off the dash side, in other words just tape it off and its not gonna be used anymore right? Also when they say ( I used the bottom side of the Tail fuse). Which fuse is that? Somebody help, i'm sure u guys have done this before.

09-16-2005, 03:25 AM	#8
Dejvid1785 3" Exhaust Join Date: Aug 2005 Posts: 193	If u can i'd appreciate it, i don't know if it makes a difference between the 88 model and the 89 cuz mine is a 88

09-16-2005, 04:07 AM	#9
Poodles 12psi boost Join Date: Jul 2005 Posts: 348	Mine come on as long as the key is on, I use em as DRL's
