Lightbulb Tail/Brake Light Issues

Hey guys, ive had my 89 Supra 7MGE non-turbo for about 2-3 months now and everything was and still is running smooth (with the exception of what i believe is a BHG from reading the other threads) until about 2 weeks ago i was riding at night in the rain and for whatever reason when i got back home the dash light indicating that my brake lights were not functioning properly and upon further review that was correct, i replaced all fuses in the rear and bulbs all to no success of bringing back my brake lights, ive heard one possibility of what it could be but before i mention what ive heard what does everyone here think it could be?? PLEASE HELP!!
kaine614 is offline   Reply With Quote
Old 10-27-2009, 01:08 AM   #2
cre

Toyota
Racing
Development

cre's Avatar

Join Date: Apr 2007
Posts: 5,036
cre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond repute
Default

Tail Lamp Failure Module - You have a couple options Repair/modify it OR delete it and rewire around it.
cre is offline   Reply With Quote
Old 10-27-2009, 01:24 AM   #3
kaine614
Stock

kaine614's Avatar

Join Date: Sep 2009
Location: Ohio
Posts: 7
kaine614 is on a distinguished road
Default

how would you suggest i rewire around it?
kaine614 is offline   Reply With Quote
Old 10-27-2009, 03:25 AM   #4
cre

Toyota
Racing
Development

cre's Avatar

Join Date: Apr 2007
Posts: 5,036
cre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond repute
Default

Follow the instructions here: http://www.supramania.com/forums/sho....php?p=1409048
cre is offline   Reply With Quote
Old 10-27-2009, 04:03 AM   #5
kaine614
Stock

kaine614's Avatar

Join Date: Sep 2009
Location: Ohio
Posts: 7
kaine614 is on a distinguished road
Default

ill do that def. thanks i appreciate it
kaine614 is offline   Reply With Quote
Old 10-27-2009, 04:18 AM   #6
cre

Toyota
Racing
Development

cre's Avatar

Join Date: Apr 2007
Posts: 5,036
cre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond repute
Default

My recommendation would be to pull the connector out of the module's box and add jumpers to that... that way, if you ever want to return to the stock wiring you can just unplug the jumper and plug in a good module.
cre is offline   Reply With Quote
Old 10-28-2009, 02:08 AM   #7
Chromemoly
Stock

Join Date: Jun 2009
Location: Las Vegas
Posts: 20
Chromemoly is on a distinguished road
Thumbs up Re: Bulb Failure Notification

Sometimes (Many Times) I have found that corrosion effects some of the wires, especially the ground straps that are attached to the plastic bulb holders. Also, sometimes the contact nodes on the bulbs have a tendancy to corrode. If you know your bulbs are good, try cleaning all your connections and your dash light may disappear.
__________________
86.5 N/A to Turbo Project
88 Turbo
69 Z/28
74 Camaro LT
87 GTI
94 EX
tungsten@cox.net
Chromemoly is offline   Reply With Quote
Old 10-28-2009, 02:41 AM   #8
cre

Toyota
Racing
Development

cre's Avatar

Join Date: Apr 2007
Posts: 5,036
cre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond repute
Default

Indeed. Corrosion is also indicative of a leaking seal: taillight, hatch, glass, wiper. As old as these cars are I generally just assume that all of the seals are leaking. When you check the lighting fixture for corrosion you should also pull the middle rear trim piece and check the chassis ground point and harness connectors shown here for further signs of corrosion.
cre is offline   Reply With Quote
Old 03-11-2012, 05:06 AM   #9
cre

Toyota
Racing
Development

cre's Avatar

Join Date: Apr 2007
Posts: 5,036
cre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond reputecre has a reputation beyond repute
Default

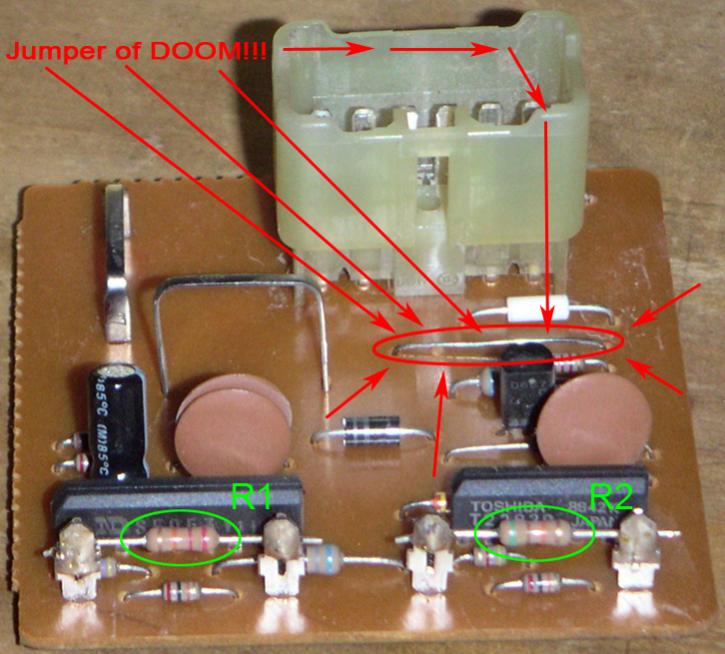

Here are a few pictures I took of a good Tail Lamp Failure Module (wow, the name even kind of implies that it will cause failures)...

Click image for larger version

Name:	Taillamp Failure Module_JD.jpg
Views:	990
Size:	68.0 KB
ID:	4499

The "Jumper of DOOM" is the most common point of failure, then fractured solder unions for the harness socket, then oxidation of the harness connector and socket. Typically, I've found that a corroded harness and fractures in the solder only cause intermittent failures or lights that are just dim but with a persistent dash indicator. The jumper I've seen completely burn holes through the board and cause a complete lighting failure.

"R1" and "R2" are used to calibrate the sensor for a certain load. If you convert to LED lighting you may be able to keep the failure sensor in place by swapping these out with a different resistor (use a potentiometer to find the value, test it with a meter when you find it and then swap in a resistor for that value).
