Retractor control box is the Integration Relay No.2

Burn N' Up · 04-19-2006, 06:25 AM

Hey guys, not really any questions here but i'm posting this in hopes that someday some supra owner will want to know exactly where the hell integration relay No.2 is like I was earlier tonight trying to track down a lighting issue. I figured it out and its the little blue Nippon Denso box in the driver's side of the dash. If you remove the undercover on the driver's side and imagine where the hood release would be if it were still in place, you'll see it staring right at you. A little blue box a little bigger than a pack of playing cards labeled "Retractor Control." The Retractor control box is the Integration Relay No.2.
I have an 89 Turbo 5 speed. Hope this helps someone.

TONY! · 04-20-2006, 02:11 AM

Quote:

Originally Posted by Burn N' Up

...A little blue box a little bigger than a pack of playing cards labeled "Retractor Control."....

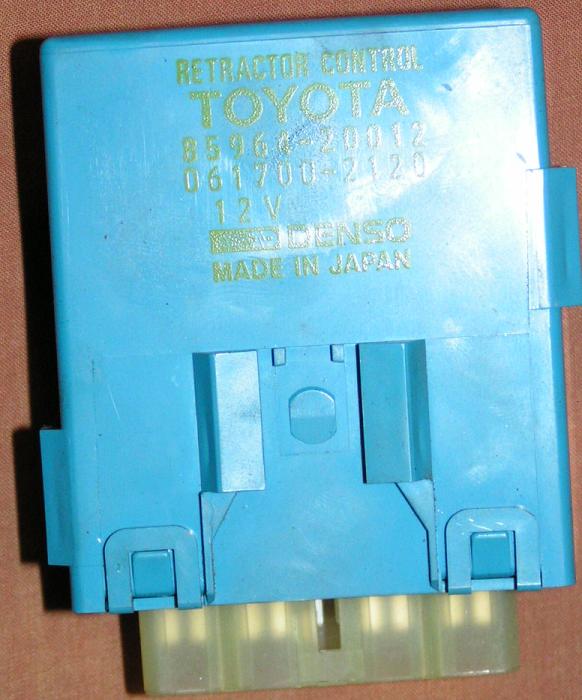

That mentioned box looks like this and controls the pop up head lights.
Already sold this piece to GMAN a while back and now it shall live the rest of its life as a Canadian! heheh

Kai · 04-29-2006, 02:30 AM

Wheres the one that controls the interior lights?

Burn N' Up · 04-30-2006, 05:33 AM

Which ones, the floor ones or the ones over head... or the courtesy lights in the doors.

Kai · 04-30-2006, 12:31 PM

The overheads - the door ones work fine, as does the one in the drivers footwell.

Burn N' Up · 04-30-2006, 08:49 PM

Make sure your all three of you switches work, make sure you bulbs arn't burnt out, make sure the "dome" fuse is in place. If your door ones are working then the switch that activates the overhead is working as well, if everything else is working then the problem is "integration relay No. 1." Not sure where that it is but it is wired to your seat belt lights and basically every interior light you have. I don't know where it is, and based off of the hour long guess and check hunt I just had i'm gonna say you'll have to find it yourself. I can describe it though using the manual, should have 10 wires going to it, Green/white, Viloet/red, Gray/blue, Red, Red/yellow, Red/white, Red/green, Blue/black, white/black(i think), and a yellow. Good luck, i assume it's gonna be another little blue box near integration 2. Let us know if you find it.
