Default Where did these two hoses go?

Hello everyone!

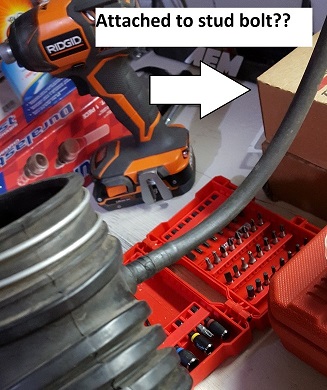

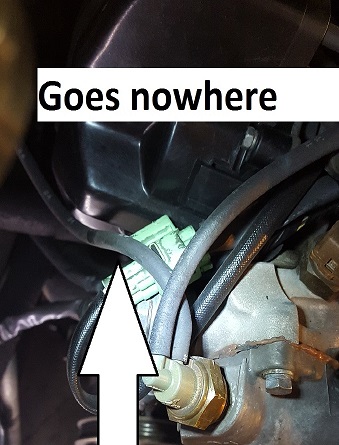

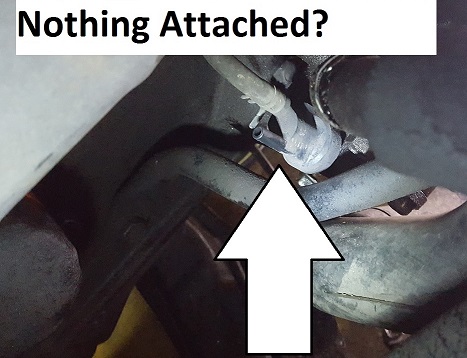

Hey I tore our my rack and pinion, pressure line and power steering pump for rebuild. While plugging away at this I found a couple things that didn't make sense to me. One air hose connected to a stud bolt off the manifold from the intake ducting. On my power steering pump there is a place for two air hoses, one of them didn't have anything connected to it. The last one was off of the thermostat housing, I had an air line there that went to nothing off of the bottom nipple?

I will add photos shortly, the forum is fighting with me on it right now
__________________
One moves, we all move

Last edited by NoMechanic; 02-07-2016 at 02:17 AM.
NoMechanic is offline   Reply With Quote
Old 02-07-2016, 02:25 AM   #2
NoMechanic
Stock

Join Date: Feb 2016
Location: Eugene
Posts: 7
NoMechanic is on a distinguished road
Default

Sorry they are so small! I had to shrink them to less then 100kb to post
Attached Thumbnails
Click image for larger version

Name:	20160206_160328.jpg
Views:	127
Size:	82.1 KB
ID:	4955   Click image for larger version

Name:	20160206_162410.jpg
Views:	135
Size:	78.9 KB
ID:	4956   Click image for larger version

Name:	20160206_162529.jpg
Views:	123
Size:	75.7 KB
ID:	4957
__________________
One moves, we all move
NoMechanic is offline   Reply With Quote
Old 02-08-2016, 03:33 AM   #3
NoMechanic
Stock

Join Date: Feb 2016
Location: Eugene
Posts: 7
NoMechanic is on a distinguished road
Default

Has anyone had a chance to pop open their hood and take look over the weekend?

thanks!

Chris
__________________
One moves, we all move
NoMechanic is offline   Reply With Quote
Old 02-08-2016, 05:49 AM   #4
btwilson86
Super Moderator

btwilson86's Avatar

Join Date: May 2007
Location: Billings, Montana
Posts: 1,034
btwilson86 is on a distinguished road
Default

I think I can help sort this out, but I don't have any pics to show right now.

First, the vacuum line coming off your intake boot connects to that vacant port on the power steering pump. Make sure the other line on the power steering pump connects to a metal line a few inches from it (towards the timing cover), and that the metal line connects to the vacuum pipes under the intake manifold via another short rubber hose.

The part on your thermostat housing with 2 vacuum lines is called the "bi-metallic vacuum solenoid valve", or BVSV; these are almost always broken, so congrats on having one that's still intact! One of the nipples (doesn't matter which) should have a vacuum line going to the throttle body, before the throttle valve. The other nipple should have a line connected to the metal pipe on the air flow meter, and then another line from that pipe to the charcoal canister by the firewall. Connecting it to the air flow meter is not required, but it does help to keep the line away from the exhaust heat and tidies up the engine bay a little.

Hope these descriptions clear things up for you!
__________________
1989 7MGTE R154 Targa Top White Package w/Blue Interior
Driftmotion 57trim CT26, Upgraded Intercooler, 2.25" Hard Pipes, 3" Turbo Back Exhaust with Test Pipe, HKS VPC w/GM 3 bar MAP sensor, APEXi S-AFC, Walbro 255lph fuel pump, ProSport EVO Series Boost / Fuel Pressure / AFR gauges, Lotek a Pillar Gauge Pod, HKS Type 0 Turbo Timer, Eibach Lowering Springs, Tokico Illumina II TEMS struts, custom powder coated Motegi Racing TrakLite wheels
btwilson86 is offline   Reply With Quote
Old 02-09-2016, 05:56 AM   #5
NoMechanic
Stock

Join Date: Feb 2016
Location: Eugene
Posts: 7
NoMechanic is on a distinguished road
Default

Just finished putting everything back together. Realized I forgot to pick up fluids! lol
How much Dex does the power steering system take on an empty system?
__________________
One moves, we all move
NoMechanic is offline   Reply With Quote
Old 02-09-2016, 05:58 AM   #6
NoMechanic
Stock

Join Date: Feb 2016
Location: Eugene
Posts: 7
NoMechanic is on a distinguished road
Default

Quote:
Originally Posted by btwilson86 View Post
I think I can help sort this out, but I don't have any pics to show right now.

First, the vacuum line coming off your intake boot connects to that vacant port on the power steering pump. Make sure the other line on the power steering pump connects to a metal line a few inches from it (towards the timing cover), and that the metal line connects to the vacuum pipes under the intake manifold via another short rubber hose.

The part on your thermostat housing with 2 vacuum lines is called the "bi-metallic vacuum solenoid valve", or BVSV; these are almost always broken, so congrats on having one that's still intact! One of the nipples (doesn't matter which) should have a vacuum line going to the throttle body, before the throttle valve. The other nipple should have a line connected to the metal pipe on the air flow meter, and then another line from that pipe to the charcoal canister by the firewall. Connecting it to the air flow meter is not required, but it does help to keep the line away from the exhaust heat and tidies up the engine bay a little.

Hope these descriptions clear things up for you!


Hey I really appreciate this! No questions asked after reading this
__________________
One moves, we all move
NoMechanic is offline   Reply With Quote
Old 02-09-2016, 02:09 PM   #7
btwilson86
Super Moderator

btwilson86's Avatar

Join Date: May 2007
Location: Billings, Montana
Posts: 1,034
btwilson86 is on a distinguished road
Default

I'm not sure how much dex to put in a dry power steering system, I can't imagine it's much more than a quart though. Be sure to turn the wheel from lock to lock as you're filling it up, that should help any trapped air escape and improve it's performance
__________________
1989 7MGTE R154 Targa Top White Package w/Blue Interior
Driftmotion 57trim CT26, Upgraded Intercooler, 2.25" Hard Pipes, 3" Turbo Back Exhaust with Test Pipe, HKS VPC w/GM 3 bar MAP sensor, APEXi S-AFC, Walbro 255lph fuel pump, ProSport EVO Series Boost / Fuel Pressure / AFR gauges, Lotek a Pillar Gauge Pod, HKS Type 0 Turbo Timer, Eibach Lowering Springs, Tokico Illumina II TEMS struts, custom powder coated Motegi Racing TrakLite wheels
btwilson86 is offline   Reply With Quote
Old 02-10-2016, 10:04 PM   #8
yale
Stock

Join Date: Oct 2015
Location: CT
Posts: 26
yale is on a distinguished road
Default

Were your dust covers on the ends of the power steering rack still in good shape? I have one that is starting to crack and come apart. Can't find a listing for them at my local parts stores.
