safc1 installation - Page 2

cre · 02-06-2010, 02:02 AM

Just leave all the adjustments at "0" and you're fine.

Green7mgte · 02-06-2010, 02:10 AM

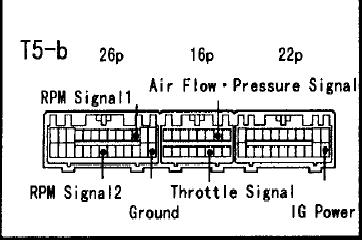

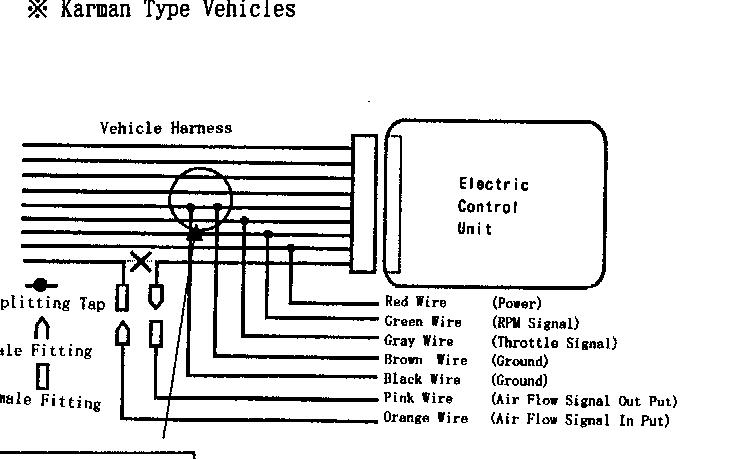

here is the pin for the ecu. and the wire diagram for Karman engines such as ours.

Green7mgte · 02-06-2010, 11:09 PM

man I spent about 3 hours out there today. hooked everything up according to the print out and blah, nothing on start up and I had the all clear code flashing on my dash. maybe something wasn't connected as securely as it should of been. idk. but now im a little sad. cold and hungry. oh and my dash is still torn apart and I have to work at 6am tomorrow.
im including this link
http://www.snapdrive.net/files/91304...SAFR_MKIII.pdf
more informative then the others above.

cre · 02-07-2010, 04:06 AM

You do still have to setup the SAFC's system for the 7M-GTE... you just don't touch any of the tuning specific settings.

Green7mgte · 02-09-2010, 02:24 AM

There isent a chance I was looking at this thing upside down could I.? shoot I hope not. when i first accessed the ecu the sticker was facing me. that is me on my back looking up, hah. would looking at it this way be the top of the ecu? so I would of actually had the connections "flipped." that would explain it not turning on.

I used the diagram of the pinout above. and treated it as tho it was still plugged in. example. Rpm signal, first plug, top row, third from the right. and did the same. Unplugged the first harness. top row, grabbed the wire third from the right. (first harness being closest to glove box)

cre · 02-09-2010, 09:08 AM

Just open the TSRM to the EFI section and locate the ECU pinout... use that and ONLY that to find the wires you're looking for. The diagram shows the pins as if you're looking into the ECU, so, for the plug you look at the back side where the wires run in. Shouldn't behaving any trouble due to things being flipped, there are pictures of the clips on the plugs so you know what end it up.... just unplug all three, solder/crimp in the new connections and you're done... this really is a 5 minute job... Your next one will be, I promise.

Green7mgte · 02-11-2010, 03:46 AM

After another few hours in the cold Im convinced my unit is faulty. (such is luck with e-bay items) I bench tested the unit and confirmed that It would turn on. after installation I had the lights of the buttons light up but no screen. If i pressed any button and held it I would get the welcome apexi screen but when I let go of the button the screen vanished. I contacted the seller to see were to proceed from here.

Green7mgte · 02-18-2010, 07:56 PM

the problem definitely was with my connections. I went through again and made secure crimps using butt connectors and heat shrink. wrapped all the connections in electo tape and used male / female connections for the air pressure connections. held my breath and turned the ignition key on. boom got lights. stays on and reads correctly. hopefully the links and diagrams and the trouble i went through will be helpful to someone else as green as me to install this unit correctly.
now to go put my glove box back together .
-regards

ps. you can clean this up and remove all the ranting. might make a good faq thread.

02-06-2010, 02:02 AM	#11
cre Administrator Join Date: Apr 2007 Location: Denver, CO Posts: 2,486	Just leave all the adjustments at "0" and you're fine. __________________ --- My new Toy. To all users: Please use descript titles when creating new threads. Fill in your profile to include the details of your vehicle (model, engine, year, swap or not and any aftermarket modifications), city AND state (there are more than one Denver in the US for example)... Even better would be to also include these in your signature. This will make it a lot easier for those who are trying to help you. Some MKIII electronics info and MAFT Pro wiring diagrams, guide and setup information can be found HERE.

02-06-2010, 02:10 AM	#12
Green7mgte Supra Forum Moderator Join Date: Nov 2009 Location: Green-Ohio Posts: 771	here is the pin for the ecu. and the wire diagram for Karman engines such as ours. Attached Thumbnails

02-06-2010, 11:09 PM	#13
Green7mgte Supra Forum Moderator Join Date: Nov 2009 Location: Green-Ohio Posts: 771	man I spent about 3 hours out there today. hooked everything up according to the print out and blah, nothing on start up and I had the all clear code flashing on my dash. maybe something wasn't connected as securely as it should of been. idk. but now im a little sad. cold and hungry. oh and my dash is still torn apart and I have to work at 6am tomorrow. im including this link http://www.snapdrive.net/files/91304...SAFR_MKIII.pdf more informative then the others above. __________________ 92 Ma71 7mGTE Auto. SafcII Supra FAQ Supra MKIII FAQ Classified Section guidelines :

02-07-2010, 04:06 AM	#14
cre Administrator Join Date: Apr 2007 Location: Denver, CO Posts: 2,486	You do still have to setup the SAFC's system for the 7M-GTE... you just don't touch any of the tuning specific settings. __________________ --- My new Toy. To all users: Please use descript titles when creating new threads. Fill in your profile to include the details of your vehicle (model, engine, year, swap or not and any aftermarket modifications), city AND state (there are more than one Denver in the US for example)... Even better would be to also include these in your signature. This will make it a lot easier for those who are trying to help you. Some MKIII electronics info and MAFT Pro wiring diagrams, guide and setup information can be found HERE.

02-09-2010, 02:24 AM	#15
Green7mgte Supra Forum Moderator Join Date: Nov 2009 Location: Green-Ohio Posts: 771	There isent a chance I was looking at this thing upside down could I.? shoot I hope not. when i first accessed the ecu the sticker was facing me. that is me on my back looking up, hah. would looking at it this way be the top of the ecu? so I would of actually had the connections "flipped." that would explain it not turning on. I used the diagram of the pinout above. and treated it as tho it was still plugged in. example. Rpm signal, first plug, top row, third from the right. and did the same. Unplugged the first harness. top row, grabbed the wire third from the right. (first harness being closest to glove box) __________________ 92 Ma71 7mGTE Auto. SafcII Supra FAQ Supra MKIII FAQ Classified Section guidelines :

02-09-2010, 09:08 AM	#16
cre Administrator Join Date: Apr 2007 Location: Denver, CO Posts: 2,486	Just open the TSRM to the EFI section and locate the ECU pinout... use that and ONLY that to find the wires you're looking for. The diagram shows the pins as if you're looking into the ECU, so, for the plug you look at the back side where the wires run in. Shouldn't behaving any trouble due to things being flipped, there are pictures of the clips on the plugs so you know what end it up.... just unplug all three, solder/crimp in the new connections and you're done... this really is a 5 minute job... Your next one will be, I promise. __________________ --- My new Toy. To all users: Please use descript titles when creating new threads. Fill in your profile to include the details of your vehicle (model, engine, year, swap or not and any aftermarket modifications), city AND state (there are more than one Denver in the US for example)... Even better would be to also include these in your signature. This will make it a lot easier for those who are trying to help you. Some MKIII electronics info and MAFT Pro wiring diagrams, guide and setup information can be found HERE.

02-11-2010, 03:46 AM	#17
Green7mgte Supra Forum Moderator Join Date: Nov 2009 Location: Green-Ohio Posts: 771	After another few hours in the cold Im convinced my unit is faulty. (such is luck with e-bay items) I bench tested the unit and confirmed that It would turn on. after installation I had the lights of the buttons light up but no screen. If i pressed any button and held it I would get the welcome apexi screen but when I let go of the button the screen vanished. I contacted the seller to see were to proceed from here. __________________ 92 Ma71 7mGTE Auto. SafcII Supra FAQ Supra MKIII FAQ Classified Section guidelines :

02-18-2010, 07:56 PM	#18
Green7mgte Supra Forum Moderator Join Date: Nov 2009 Location: Green-Ohio Posts: 771	the problem definitely was with my connections. I went through again and made secure crimps using butt connectors and heat shrink. wrapped all the connections in electo tape and used male / female connections for the air pressure connections. held my breath and turned the ignition key on. boom got lights. stays on and reads correctly. hopefully the links and diagrams and the trouble i went through will be helpful to someone else as green as me to install this unit correctly. now to go put my glove box back together . -regards ps. you can clean this up and remove all the ranting. might make a good faq thread. __________________ 92 Ma71 7mGTE Auto. SafcII Supra FAQ Supra MKIII FAQ Classified Section guidelines :
